Đế ra chân ESP8266 NodeMCU Lua Motor Driver L293D

    Đế ra chân ESP8266 NodeMCU Lua Motor Driver L293D
Nhà sản xuất: Import
Mã sản phẩm:HS000405
Giá bán
44,000₫
Thêm vào giỏ hàng

Đế ra chân ESP8266 NodeMCU Lua Motor Driver L293D được thiết kế tương thích với phiên bản NodeMCU Lua ESP8266 bao gồm phần PinOut, công tắc và Driver điều khiển động cơ L293D giúp bạn có thể dễ dàng xây dựng các ứng dụng robot điều khiển qua Wifi trên ESP8266.

Đế ra chân ESP8266 NodeMCU Lua Motor Driver L293D có thể điều khiển 2 động cơ DC thông qua Driver L293D, sử dụng các chân D1, D2, D3, D4 tương ứng với các chân PWMA(motor A), PWMB (motor B), DA (direction of motor A), and DB (direction of motor B) trên L293D.

Thông số kỹ thuật:

  • Tương thích với Kit Wifi SoC ESP8266 NodeMCU Lua.
  • Driver điều khiển động cơ: L293D
  • Motor power (VM): 4.5 ~ 36V
  • Control power (VIN): 4.5V ~ 9V(10V MAX)
  • Provide the shorcut connector (short by VM and VIM), thus can use
  • May use common power source (4.5V~9V) by shorting VM and VIM
  • Controller Current (Iss):<=60mA (Vi=L), <=(Vi=H);
  • Motor working current (Io): <=1.2A;
  • Max power dissipation: 4W(T=90℃);
  • Control signal input voltage:
    • 2.3V<=VIH<=VIN (high)
    • -0.3V<=VIL<=1.5V (low)
  • Working temperature: -25℃ to +125℃ (non condensing)
  • Motor Drive: Dual high power H bridge
  • ESP-12E Dev Kit control port:D1, D3 (motor A)D2, D4 (motor B)
  • Weight: ~20g.

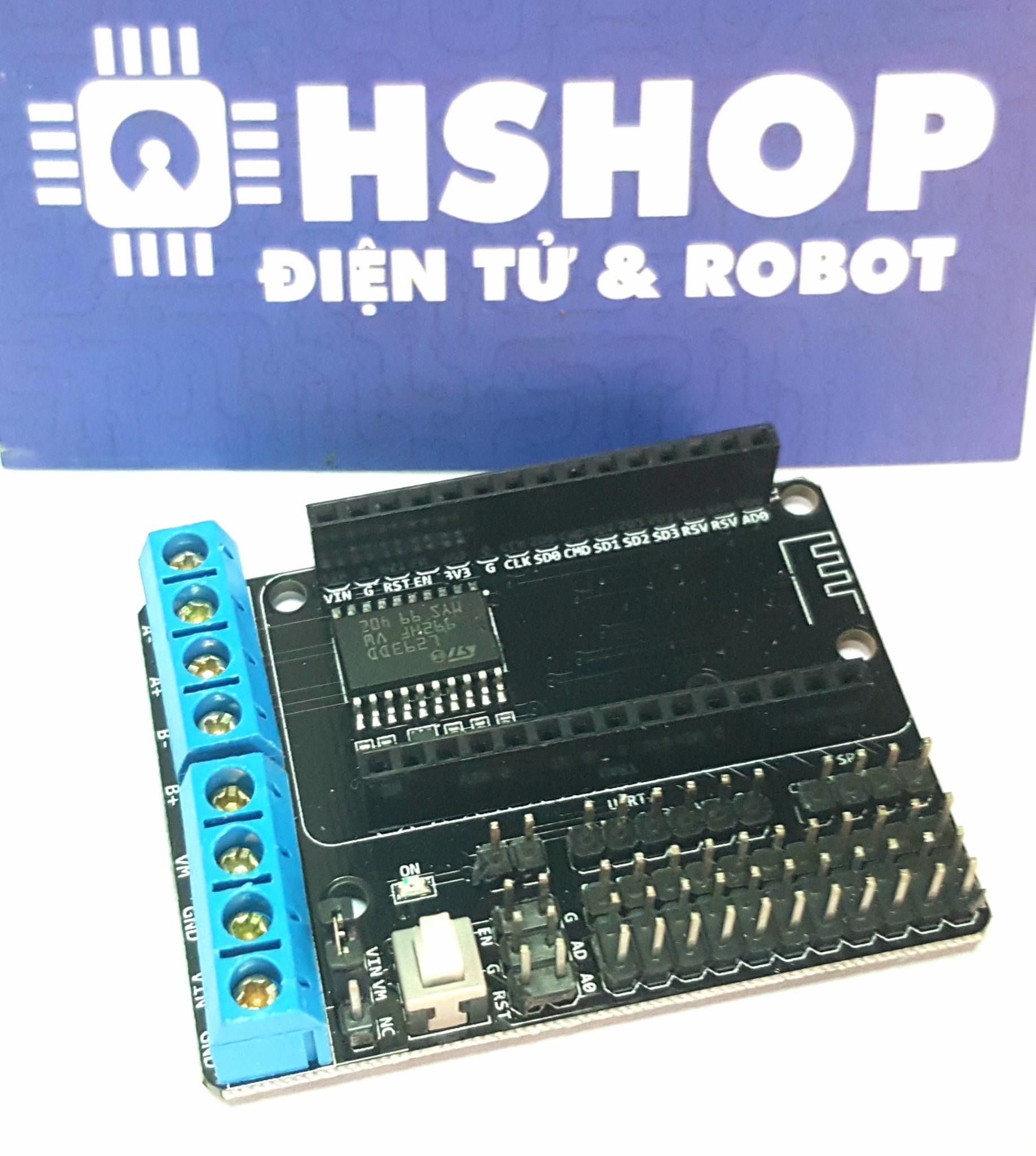

Đế Ra Chân ESP8266 NodeMCU Lua Motor Driver L293D

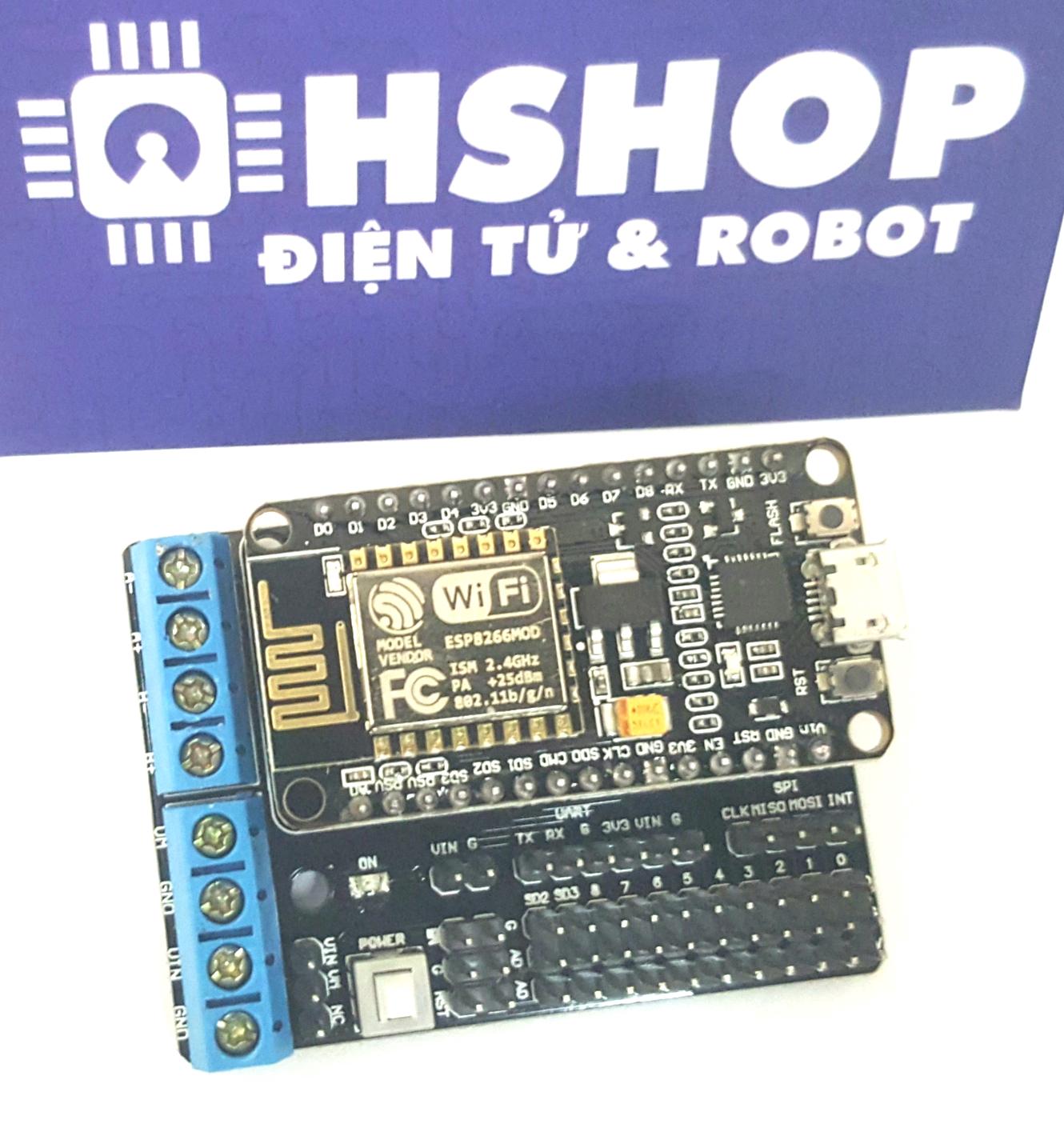

Đế Ra Chân ESP8266 NodeMCU Lua Motor Driver L293D



Thông tin sản phẩm được Hshop.vn tự xây dựng, nếu sử dụng xin vui lòng ghi rõ nguồn, xin cảm ơn!
