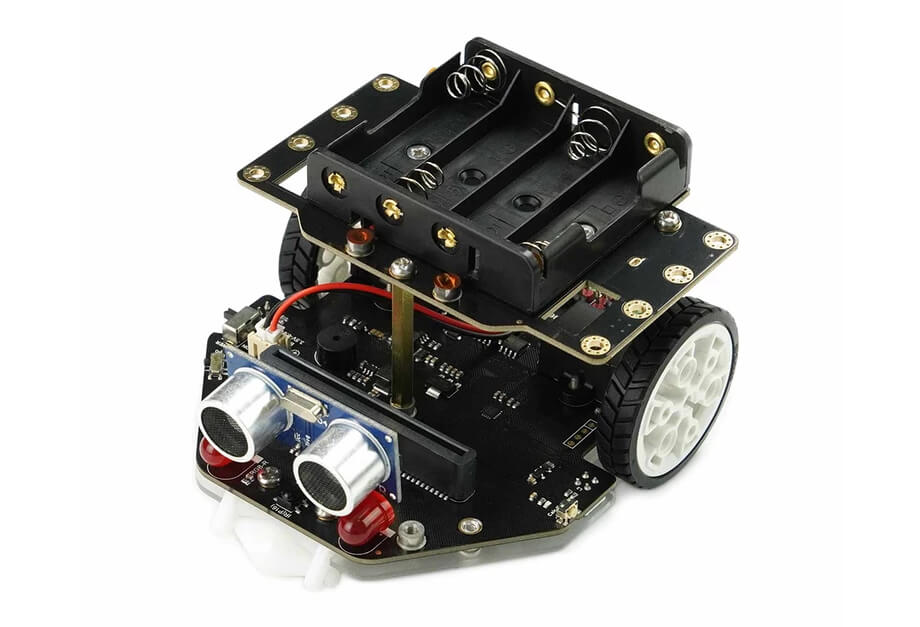

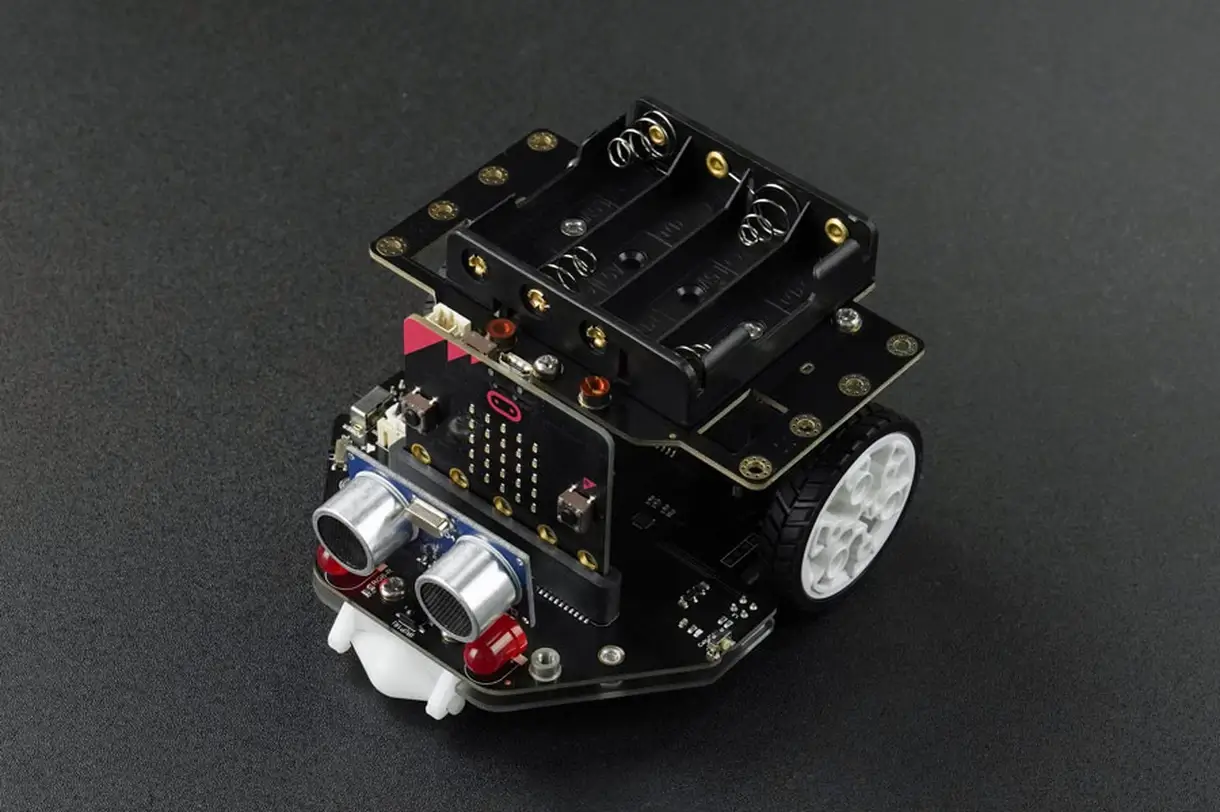

Bộ kit DFRobot micro:Maqueen Plus V2 (NiMH Rechargeable Battery) - STEAM Education Robot for micro:bit

• No complex assembly, get started in minutes

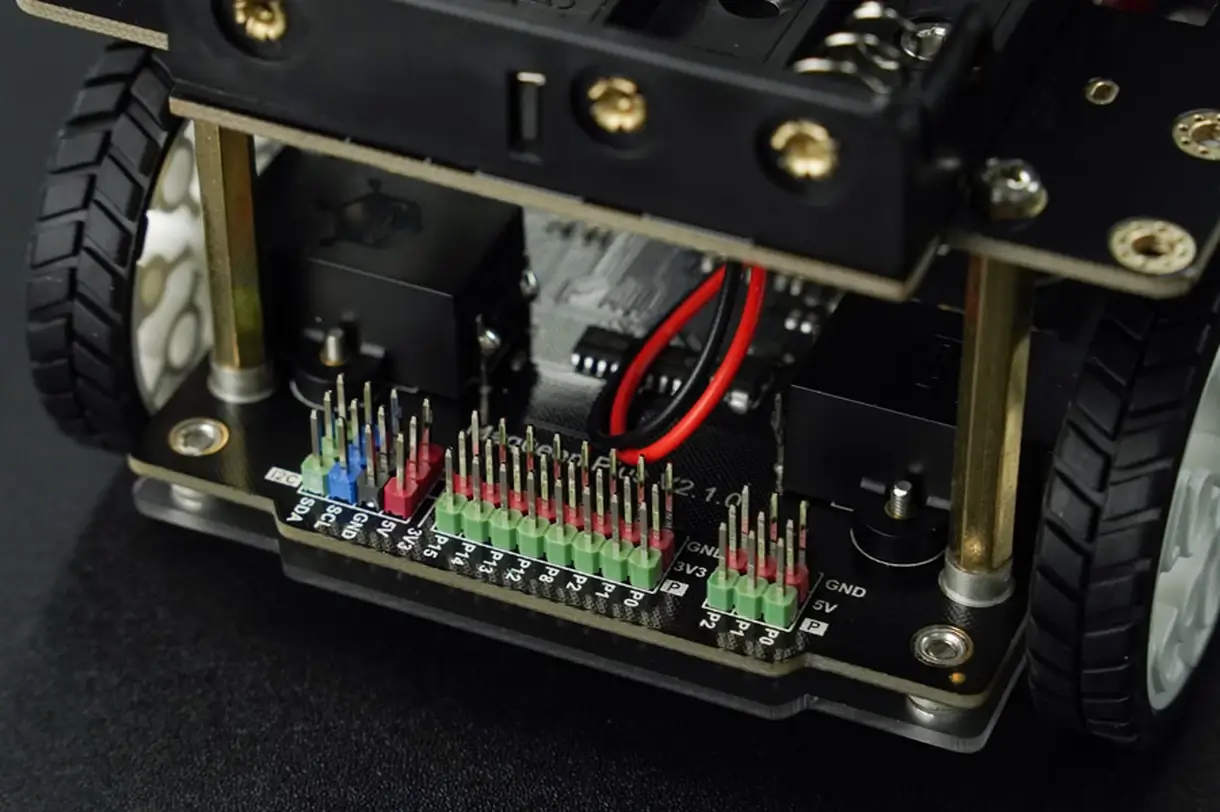

• More IO expansion ports: 3.3V IOx7, 5V IOx3, I2Cx3
• 5 line-tracking sensors, reliable and flexible
• Larger body, more flexible expansion methods
• Two versions to choose from: AA battery and 18650 battery
      AA battery version supports 1.2V Ni MH battery or 1.5V alkaline battery, while 18650 battery version supports 3.7V 18650 battery
• Works well with HuskyLens AI camera

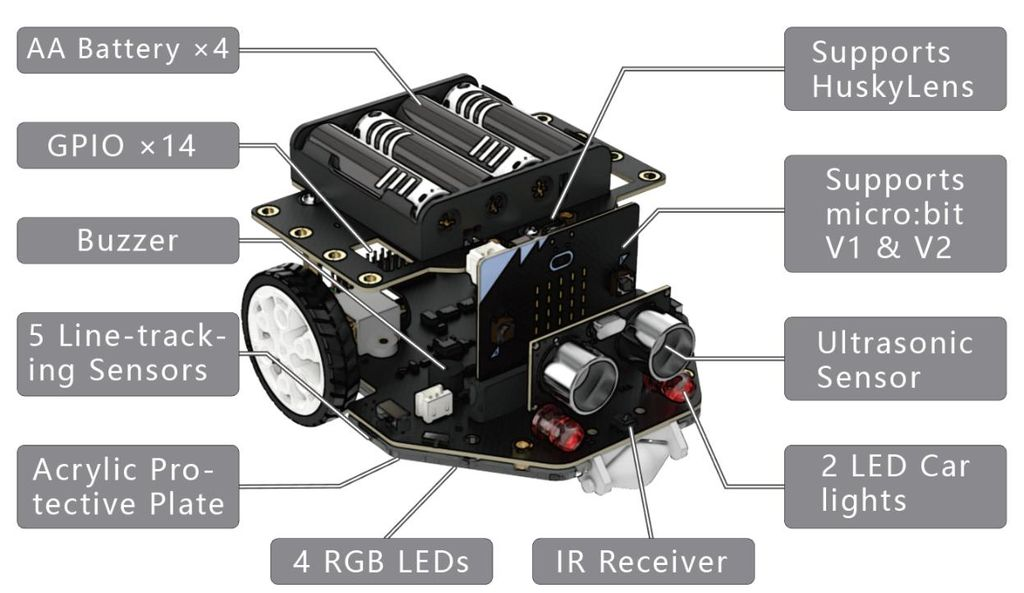

• Rich peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, etc.

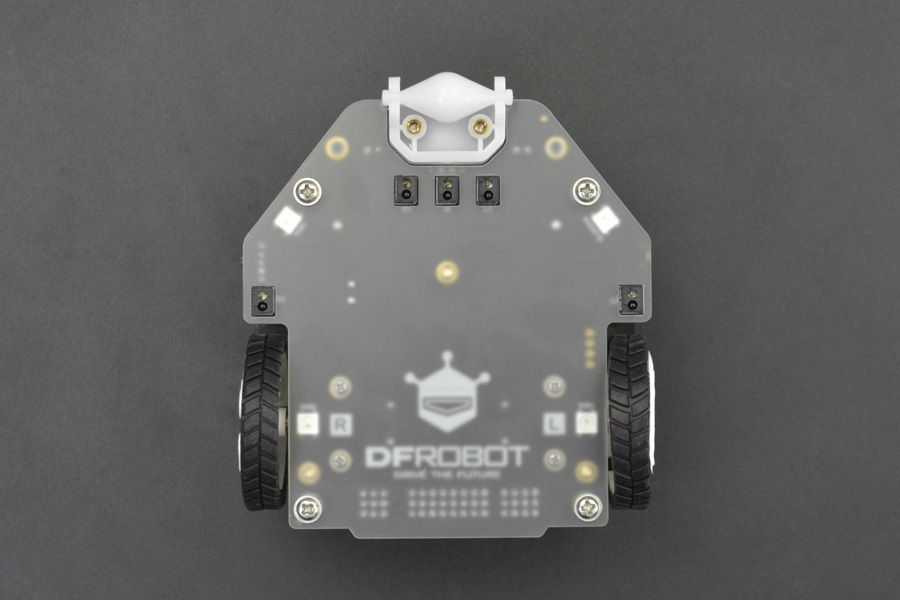

• Frosted acrylic protective plate at the bottom

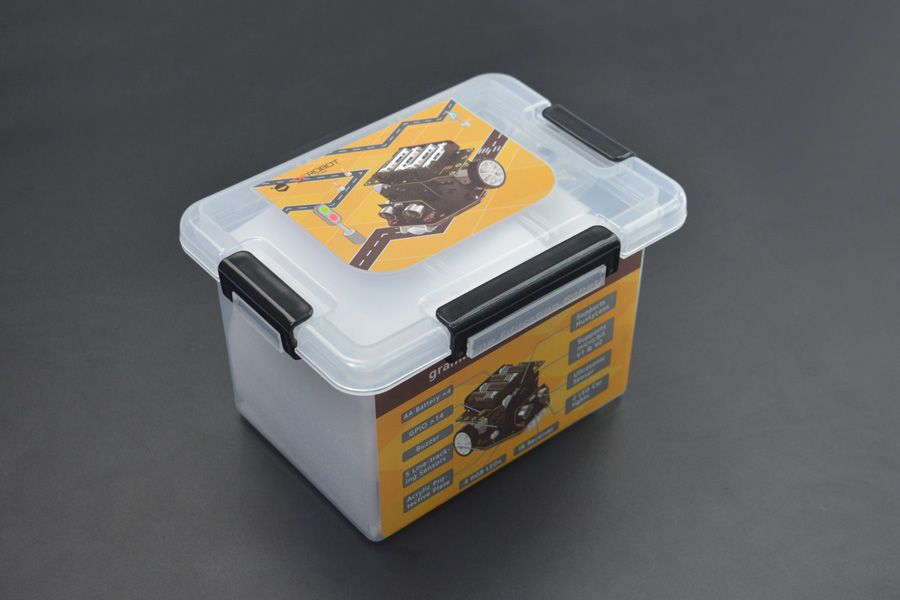

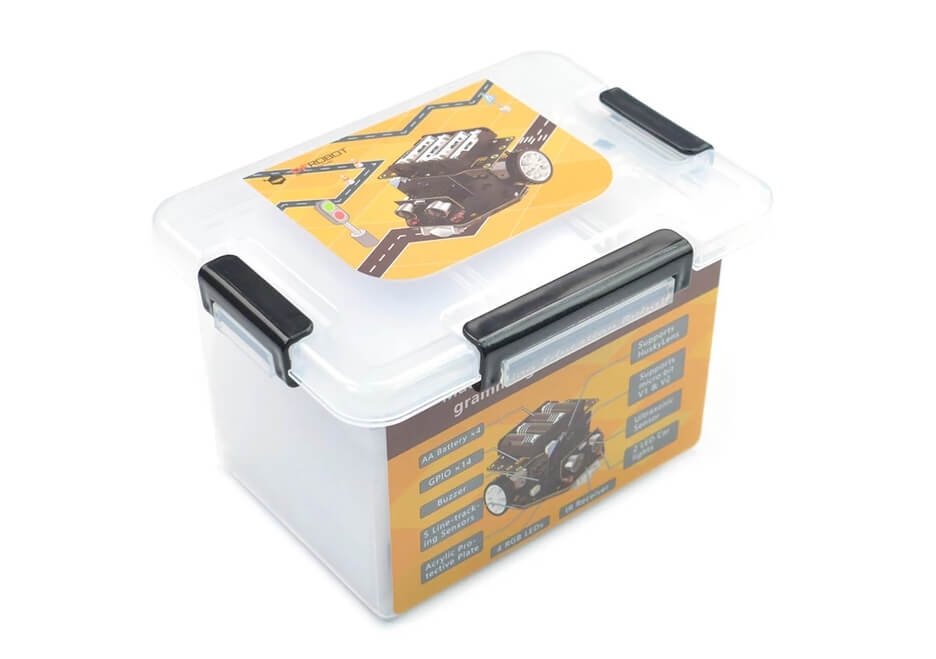

• Storage box with a deeper base to provide enough room for the assembled Maqueen Plus car

APPLICATIONS

• STEAM Education

SPECIFICATION

• Model: Bộ kit DFRobot micro:Maqueen Plus V2 (NiMH Rechargeable Battery) - STEAM Education Robot for micro:bit

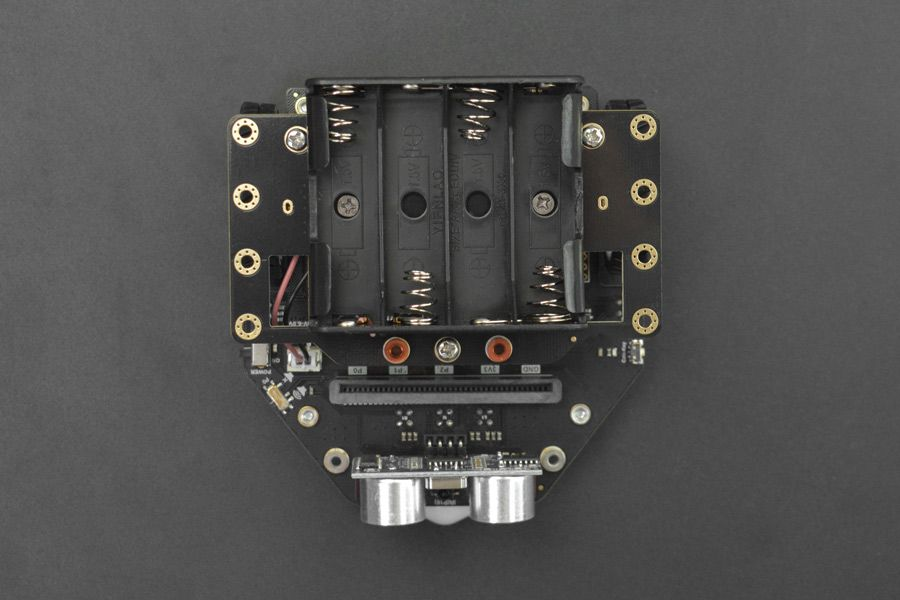

• Power Supply: 1.5V AA alkaline battery x 4 or 1.2V AA Ni-MH battery x 4 (không đi kèm)
• Support: Micro:bit V1.5 and Micro:bit V2 (không đi kèm)
• N20 All-metal Gear Motor x 2
• Motor Reduction Ratio: 1:150
• Motor Rated Rotation Speed: 133 rpm
• Buzzer x 1
• 5V IO (P0 P1 P2) x 3
• 3.3V IO (P0 P1 P2 P8 P9 P12 P16) x 7
• 3.3V I2C x 2
• 5V I2C x 1
• Large Size LED Car Lights x 2
• RGB Ambient Lights x 4
• Line-tracking Sensor x 5
• Line-tracking Sensor with One-key Calibration
• IR Receiver x 1

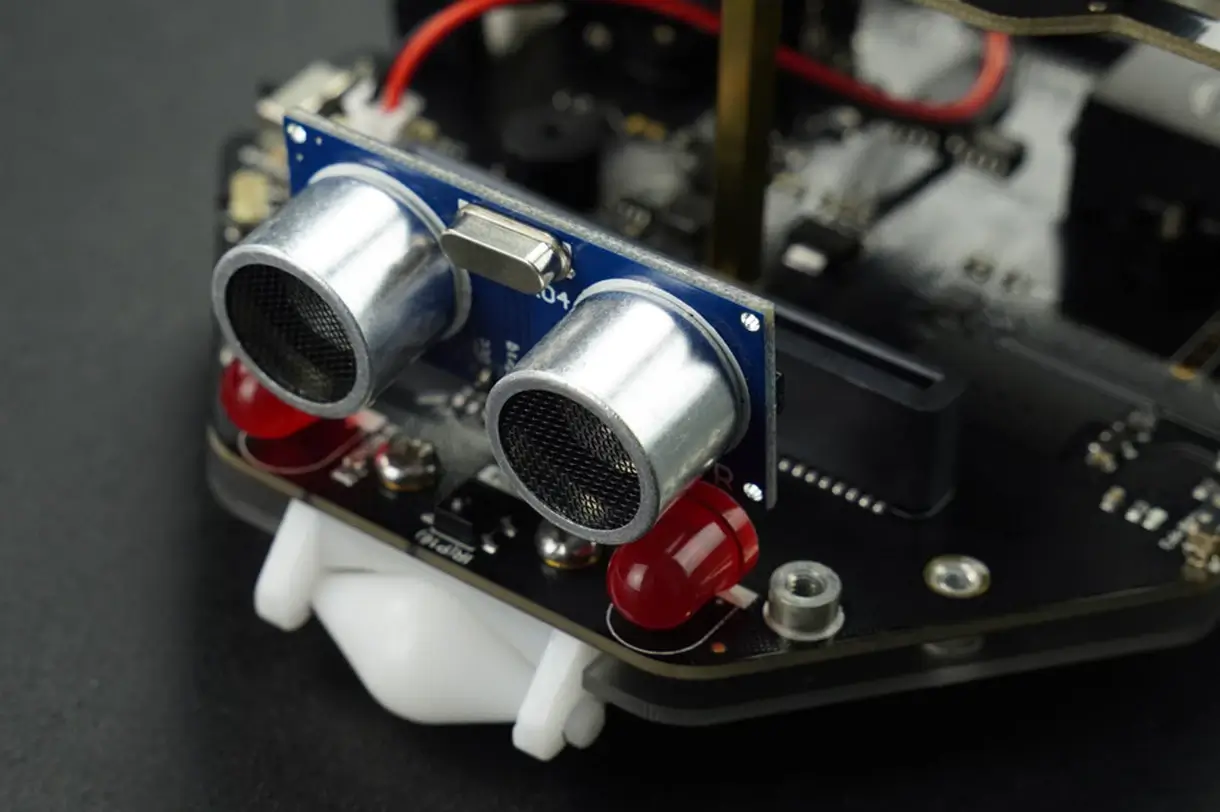

• SRO4 Ultrasonic Module x 1
• Dimension: 136mm×65mm/5.35×2.56"
• Programming Platform: Mind+, MakeCode
