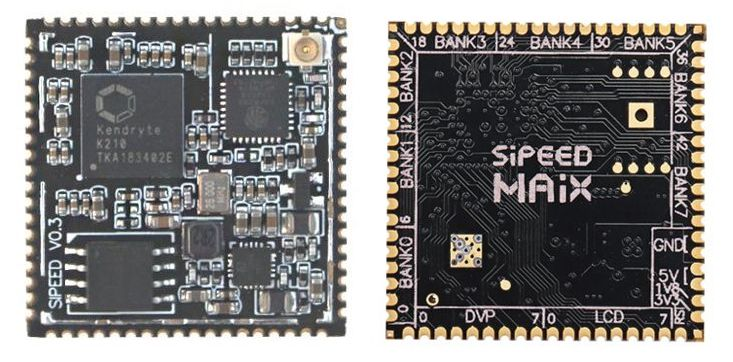

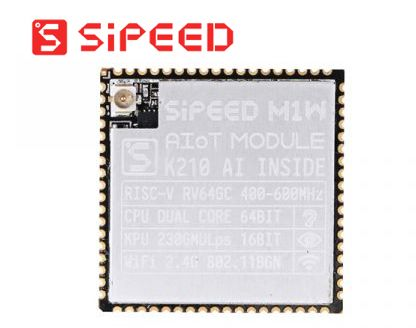

Sipeed Maix M1W K210 RISC-V + Wifi ESP8285 AloT Module

    Sipeed Maix M1W K210 RISC-V + Wifi ESP8285 AloT Module
Nhà sản xuất: Sipeed
Mã sản phẩm:HS001609
Giá bán
580,000₫
Thêm vào giỏ hàng

Sipeed Maix M1W K210 RISC-V + Wifi ESP8285 AloT Module có vi điều khiển trung tâm (MCU) Kendryte K210 RISC-V Dual Core 64-bit 400Mhz with KPU/FPU với tốc độ xử lý đầy mạnh mẽ, ngoài ra module M1W còn được tích hợp thêm IC kết nối Wifi ESP8285 giúp bạn có thể thực hiện ngay các ứng dụng xử lý ảnh, AI, IoT, Deep Learning,...mới nhất hiện nay.

Thông số kỹ thuật:

  • Model: Sipeed Maix M1W K210 RISC-V + Wifi ESP8285 AloT Module
  • CPU: Sipeed Kendryte K210 RISC-V Dual Core 64-bit 400Mhz with KPU/FPU, adjustable Powerful dual-core 64-bit open architecture-based processor with rich community resources
  • Included Wifi SoC IC ESP8285.
  • 1st competitive RISC-V chip, also 1st competitive AI chip, newly release in Sep. 2018
  • 28nm process, dual-core RISC-V 64bit IMAFDC, on-chip huge 8MB high-speed SRAM (not for XMR :D), 400MHz frequency (able to 800MHz)
  • KPU (Neural Network Processor) inside, 64 KPU which is 576bit width, support convolution kernels, any form of activation function. It offers 0.25TOPS@0.3W,400MHz, when overclock to 800MHz, it offers 0.5TOPS. It means you can do object recognition 60fps@VGA
  • APU (Audio Processor) inside, support 8mics, up to 192KHz sample rate, hardcore FFT unit inside, easy to make a Mic Array (MAIX offer it too)
  • Flexible FPIOA (Field Programmable IO Array), you can map 255 functions to all 48 GPIOs on the chip
  • DVP camera and MCU LCD interface, you can connect an DVP camera, run your algorithm, and display on LCD
  • Many other accelerators and peripherals: AES Accelerator, SHA256 Accelerator, FFT Accelerator (not APU's one), OTP, UART, WDT, IIC, SPI, I2S, TIMER, RTC, PWM, etc.

SOFTWARE FEATURES

  • FreeRtos & Standard SDK: Support FreeRtos and Standrad development kit.
  • MicroPython Support: Support MicroPython on M1
  • Machine vision: Machine vision based on convolutional neural network
  • Machine hearing: High performance microphone array processor

PART LIST

  • 1x Sipeed Maix M1W module

LEARN AND DOCUMENTS

Sipeed Maix M1W K210 RISC-V + Wifi ESP8285 AloT Module

Sipeed Maix M1W K210 RISC-V + Wifi ESP8285 AloT Module

Sipeed Maix M1W K210 RISC-V + Wifi ESP8285 AloT Module
