Mạch Seeed Studio XIAO RP2040 - Supports Arduino, MicroPython and CircuitPython

Lưu ý: có thể mua thêm mạch Grove Shield For Seeed Studio XIAO giúp giúp ra chân GPIOs của mạch theo chuẩn connector Grove để kết nối với vô số các module và cảm biến trong hệ Grove System.

Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name "XIAO" here represents its half feature "Tiny", and the other half will be "Puissant".

Seeed Studio XIAO RP2040 is compatible with the Raspberry Pi RP2040 ecosystem as they share the same RP2040 chip. It supports multiple languages including C / MicroPython / CircuitPython. This will be a great tool for you to get started with MicroPython.

Features

• High Performance: Powered by Raspberry Pi 2040 chip, dual-core operating up to 133 MHz, equipped 264KB of SRAM, and 2MB of onboard flash memory

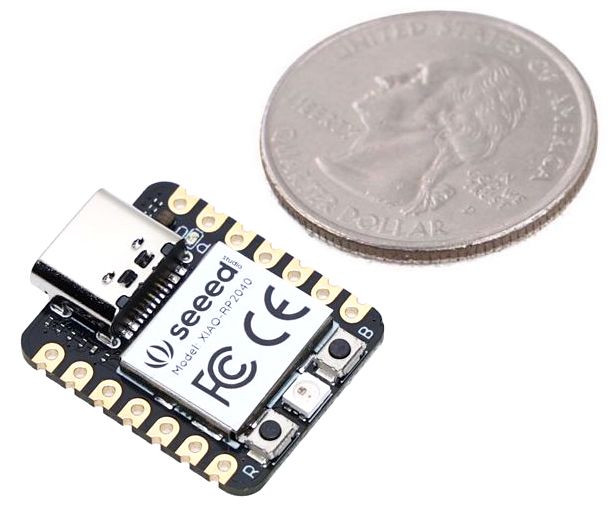

• Ultra-small Design: 21 x 17.5mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices
• Multiple Development Interfaces: 2x buttons, 11x digital / 4x analog pins, 1x I2C interface, 1x UART port, 1x SPI port, and 1x SWD Bonding pad interface
• Multiple Develop Platform: Support Arduino / Micropython / CircuitPython development, friendly for beginners, satisfied for electronics enthusiasts

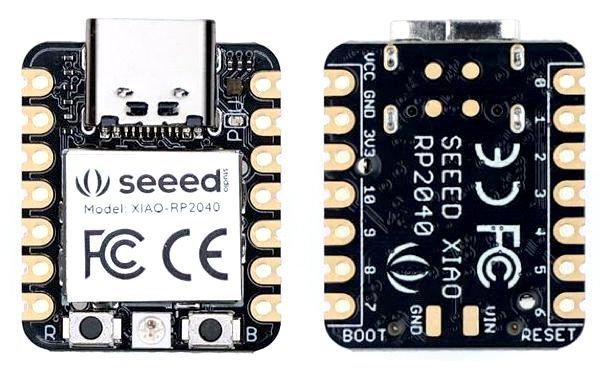

• Perfect for Production: Breadboard-friendly & SMD design, no components on the back

RP2040 is the debut microcontroller from Raspberry Pi. It brings signature values of high performance, low cost, and ease of use to the microcontroller space.

Seeed Studio XIAO RP2040 is based on the RP2040 chip and wrapped in a compact size with multiple interfaces like other products from the Seeed Studio XIAO series, and it's compatible with the Seeed Studio XIAO expansion board.

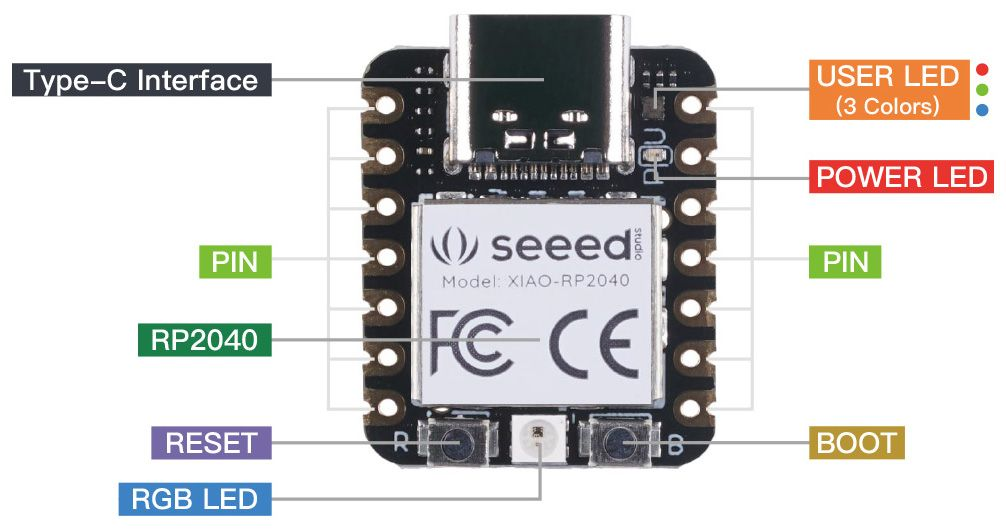

In addition to the powerful CPU, the Seeed Studio XIAO RP2040 has 264K SRAM and 2MB of Flash on board. Some PINs have various functions. Moreover, Seeed Studio XIAO RP2040 supports the USB Type-C interface which can supply power and download code. 1 Reset button, 1 BOOT button, 1 user-programmable RGB LED, 1 power LED, 2 status indicators, and 1 user LED are on board, allowing developers to debug their code very easily.

The robust performance makes it perfect for machine learning applications, and the tiny size allows it to be used in wearable devices, not just for prototypes but the mass production.

Specification

• SKU: 102010428
• CPU: Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
• Storage: 264KB of SRAM, and 2MB of onboard Flash memory
• I/O PINs: 11 x digital pins, 4 x analog pins, 11 x PWM Pins
• Interface: 1 x I2C interface, 1 x UART interface, 1 x SPI interface, 1 x SWD Bonding pad interface
• Power supply & Downloading interface: USB Type-C interface
• LEDs: 1 x user LED, 1 x power LED, two LEDs for serial port downloading, 1 x RGB LED
• Button: 1 x RESET button, 1 x BOOT button
• Power Pads: For the battery power supply
• Software compatibility: Support Micropython / Arduino / CircuitPython
• Cover: Projection cover for protecting the circuit
• Dimensions: 21x17.5 mm

Typical Application

• Wearable devices
• Rapid prototyping (directly attached to the expanded PCB as a minimal system)
• Perfect for all the projects that need mini Arduino
• USB development (USB to multi-channel TTL/USB host mode, etc.)
• DIY keyboard
