Grove - Wio-E5 (STM32WLE5JC) Lora 868/915Mhz

***Lưu ý hiện tại Seeed Studio đã đổi tên gọi cũ Lora-E5 thành Wio-E5.

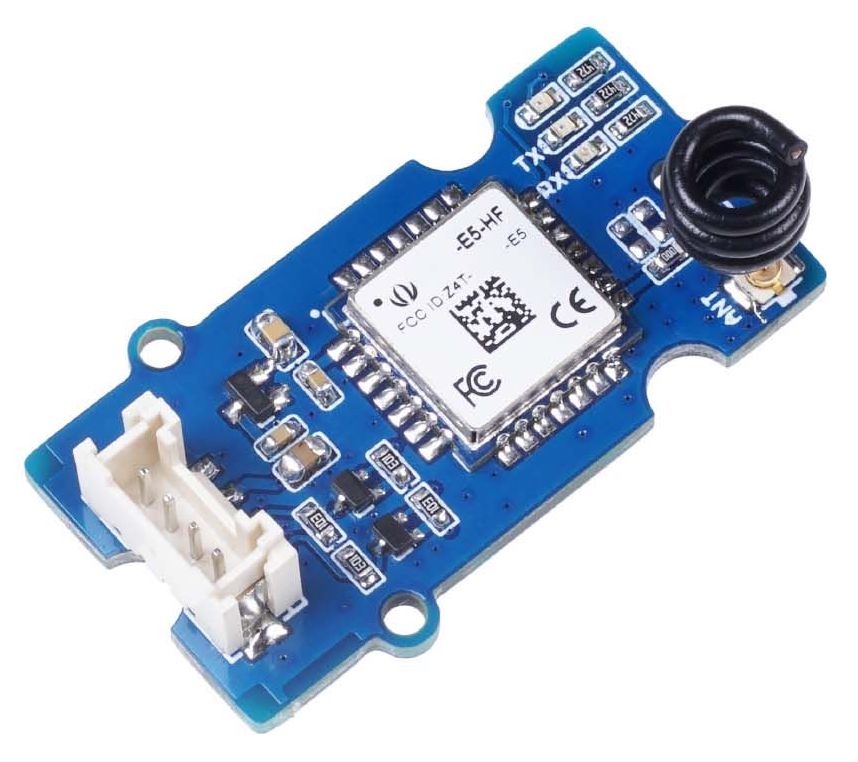

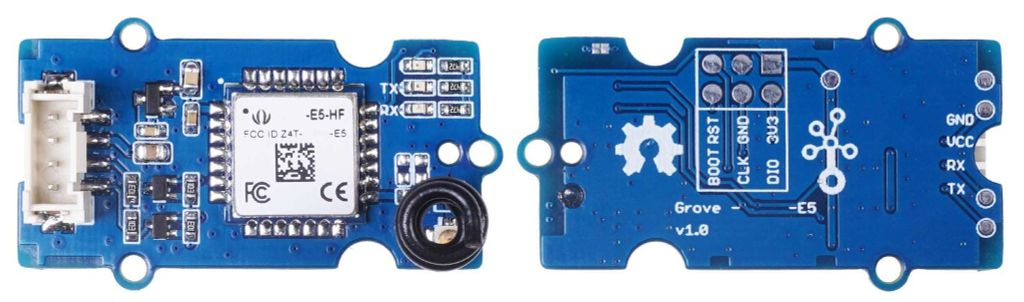

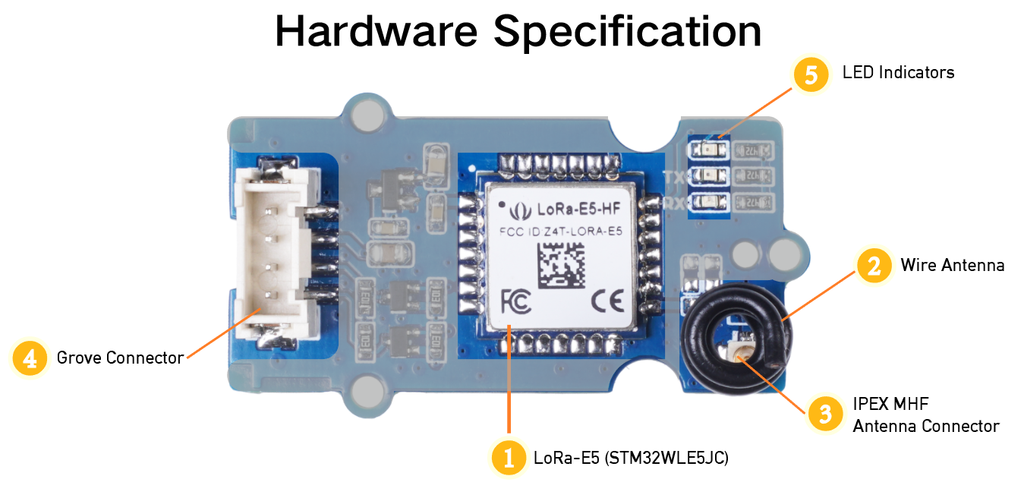

Grove Wio-E5 embedded with Wio-E5 STM32WLE5JC, powered by ARM Cortex M4 ultra-low-power MCU core and Long Range SX126x, is an easy-to-use wireless radio module, supporting LoRaWAN protocol on the EU868 & US915 frequency and (G)FSK, BPSK, (G)MSK, Long Range modulations.

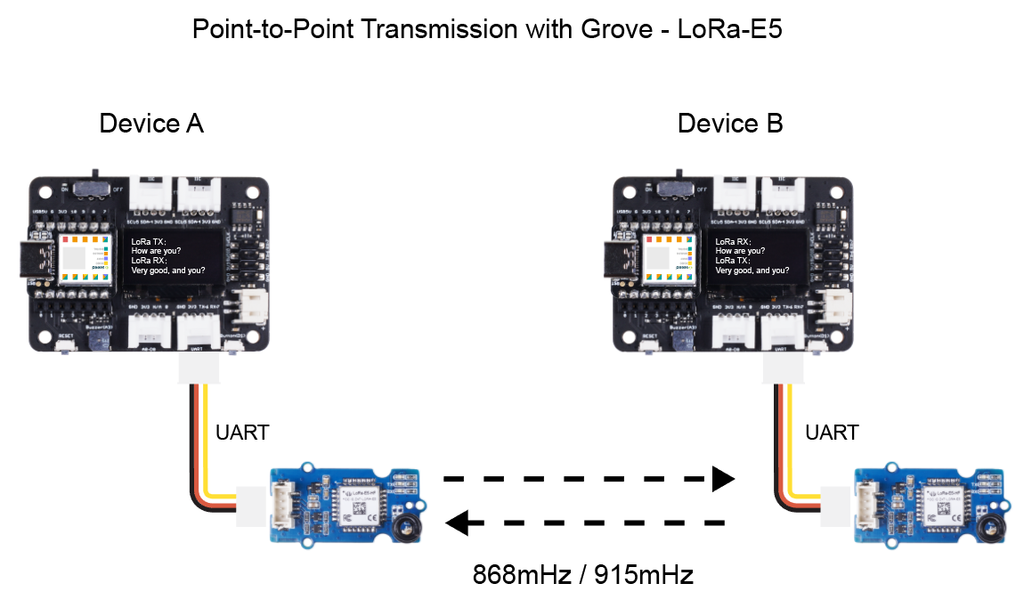

Grove - Wio-E5 can endow your development boards' strong features of ultra-long transmitting range, great performance, and high efficiency by easiliy plug and play with Grove connector on board. By connecting Grove - Wio-E5 to your development boards, your devices is able to communicate with and control Wio-E5 conveniently by AT command through UART connection.

Specifications

• SKU:
• Voltage Supply: 3.3~5VDC
• Power Output: Up to +20 dBm at 3.3VDC
• Working Frequency: 868MHz / 915MHz
• Protocol: LoRaWAN
• Sensitivity: -116.5dBm ~ -136dBm
• Modulation: Long Range , (G)FSK, (G)MSK and BPSK
• Current: Only 60uA in sleep mode

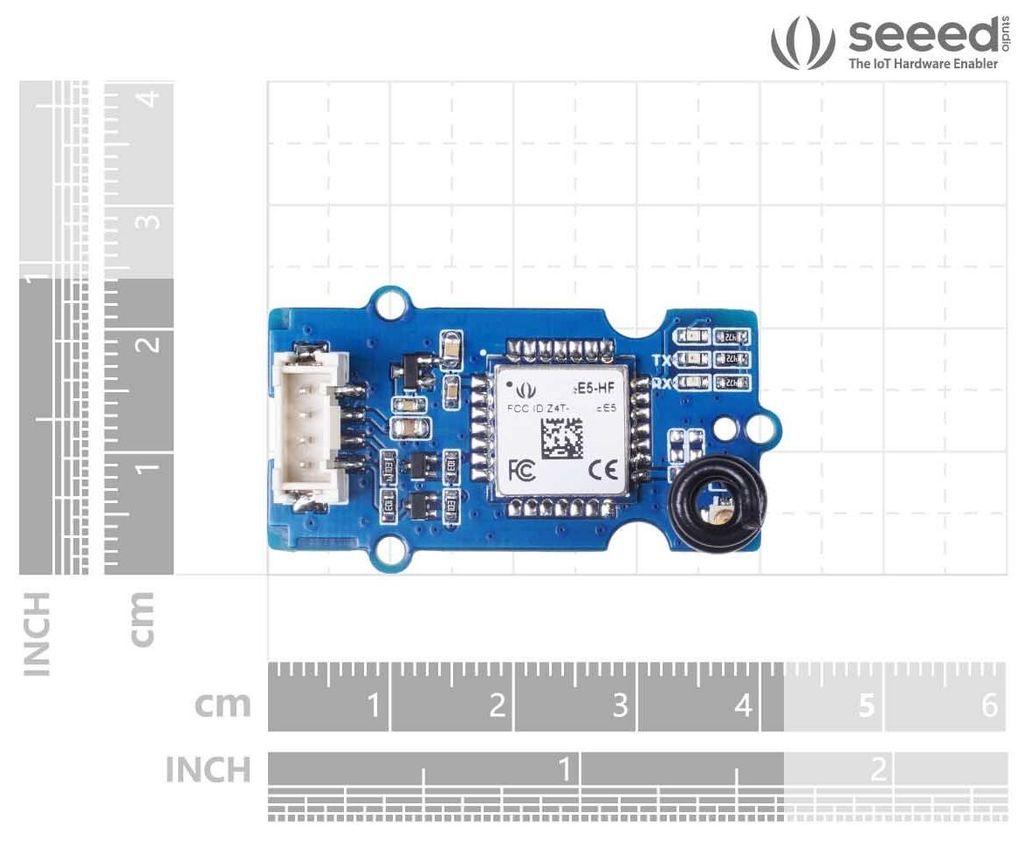

• Size: 20*40mm
• Working Temperature: -40℃ ~ 85℃

Applications

• Works for LoRaWAN sensor nodes and any wireless communication application.
• IoT device testing and development
