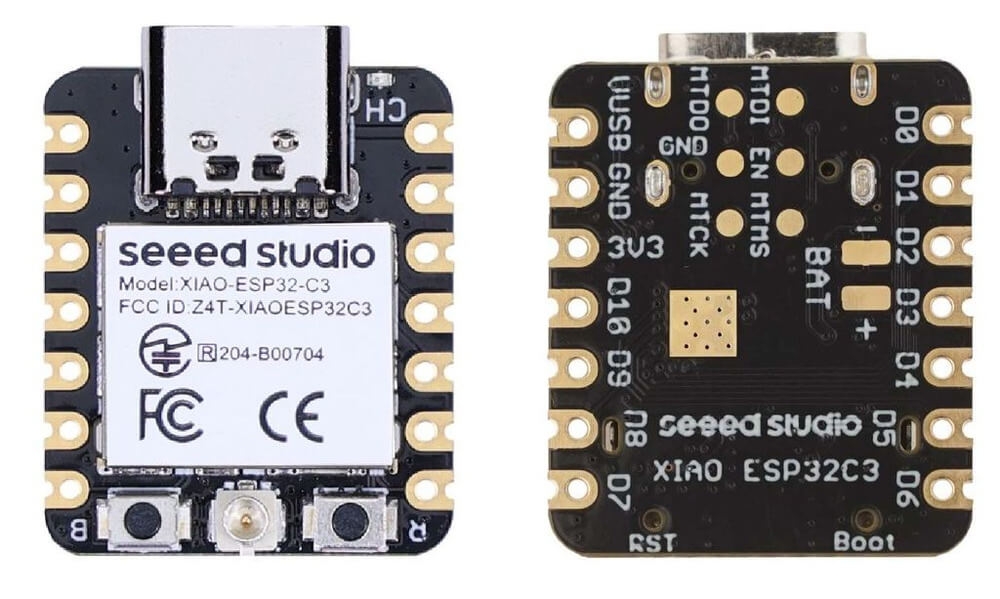

Mạch Seeed Studio XIAO ESP32C3 RISC-V with Wi-Fi and Bluetooth5.0

Lưu ý: có thể mua thêm mạch Grove Shield For Seeed Studio XIAO giúp giúp ra chân GPIOs của mạch theo chuẩn connector Grove để kết nối với vô số các module và cảm biến trong hệ Grove System.

Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name "XIAO" here represents its half feature "Tiny", and the other half will be "Puissant".

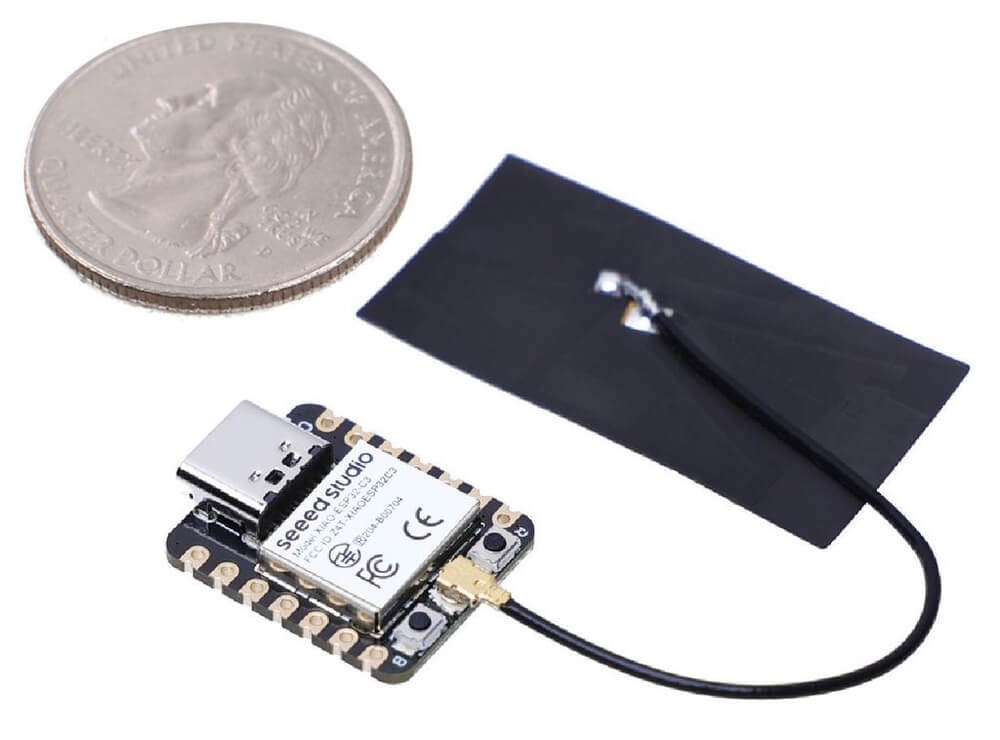

Seeed Studio XIAO ESP32C3 adopts new RISC-V architecture, supporting both Wi-Fi and BLE wireless connectivities. For Internet of Things applications, you will find it is flexible and suitable for all kinds of IoT scenarios.

Features

• Flexible MCU Board: Incorporate the ESP32-C3 32-bit RISC-V chip, operating up to 160 MHz, mounted multiple development ports, supported by Arduino / CircuitPython
• Outstanding RF performance: Implement complete Wi-Fi functions and Bluetooth Low Energy, while supporting communication over 100m with a U.FL antenna
• Elaborate Power Design: Provide 4 working modes as low as 44 μA in deep sleep mode, while supporting lithium battery charge management
• Thumb-sized Design: 21 x 17.5mm, Seeed Studio XIAO series classic form factor, suitable for wearable devices
• Perfect for Production: Breadboard-friendly & SMD design, no components on the back

Seeed Studio XIAO ESP32C3 has equipped a highly-integrated ESP32-C3 chip, built around a 32-bit RISC-V chip processor with a four-stage pipeline that operates at up to 160 MHz.

The board equips highly-integrated ESP32-C3 SoC. The chip has been installed with a complete 2.4GHz Wi-Fi subsystem which means it supports Station mode, SoftAP mode, SoftAP & Station mode, and promiscuous mode for multiple Wi-Fi applications. It works under an ultra-low power state, also supporting features of Bluetooth 5 and Bluetooth mesh. There are 400 KB SRAM & 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.

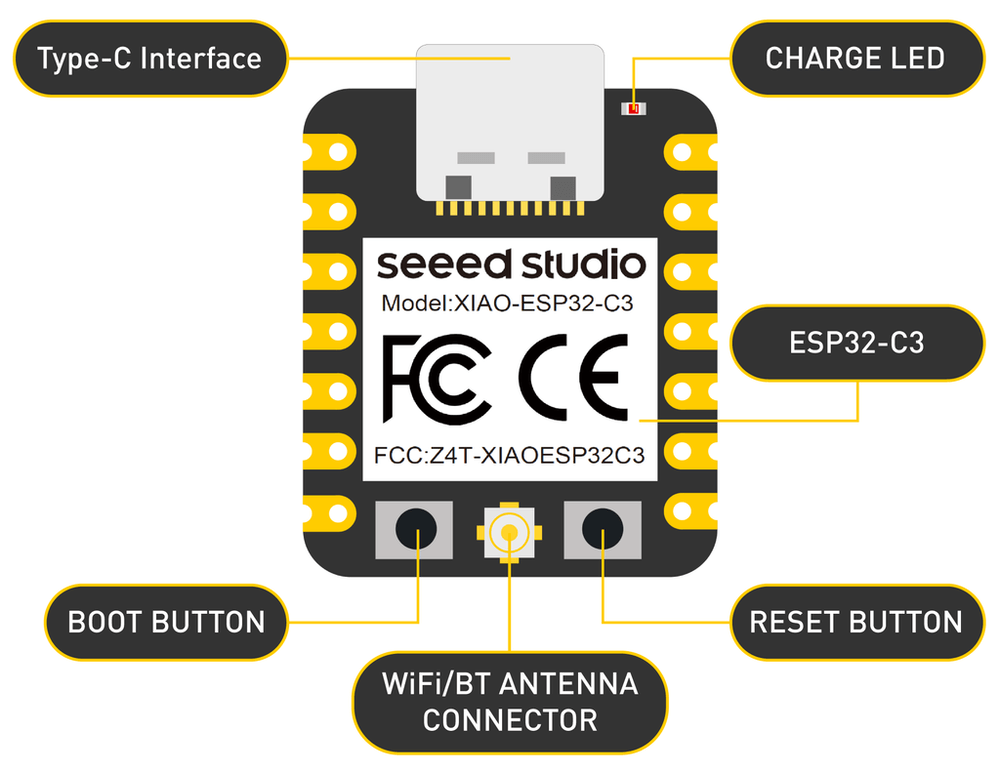

Being a number to the Seeed Studio XIAO family, the board deservedly maintains the classic thumb-sized form-factor design and elegant productization of single-sided components mounting. Meanwhile, it has equipped with a battery charge chip and integrated circuit for enhancing its ability to carry. This board comes included with an external antenna to increase the signal strength for wireless applications. There are 11 digital I/O that can be used as PWM pins and 4 analog i/o that can be used as ADC pins. It supports UART, IIC, and SPI serial communication ports, also including IIS (Internet Information Services). Utilizing its small and exquisite hardware design and the powerful onboard chip, programming by Arduino, it will offer more ability to wearable and portable devices or other applications.

Specification

• SKU: 113991054
• Processor: ESP32-C3 SoC RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz
• Wireless:
  • Complete 2.4GHz Wi-Fi subsystem
  • Bluetooth 5.0/ Bluetooth mesh
• On-chip Memory: 400KB SRAM & 4MB Flash
• Interface:
  • 1 x UART, 1 x IIC, 1 x IIS, 1 x SPI,11 x GPIO(PWM), 4 x ADC
  • 1 x Reset button, 1 x Boot button
• Dimensions: 21 x 17.5mm
• Power
  • Circuit operating voltage: 3.3V@200mA
  • Charging current: 50mA/100mA
  • Input voltage (VIN): 5V
• Deep Sleep Power Consumption: Deep Sleep Model: >44 μA
• Wi-Fi Enabled Power Consumption
  • Active Model: <75 mA
  • Modem-sleep Model: <25 mA
  • Light-sleep Model: <4 mA
• BLE Enabled Power Consumption
  • Modem-sleep Model: <27 mA
  • Light-sleep Model: <10 mA

Typical Application

• Internet of Things
• Wearable devices
• Health monitoring
• Education
• Low-Power(LP) networking
• Rapid prototyping

Tìm hiểu về Seeed Studio XIAO Series.

Trang chủ nhà sản xuất và hướng dẫn sử dụng.
