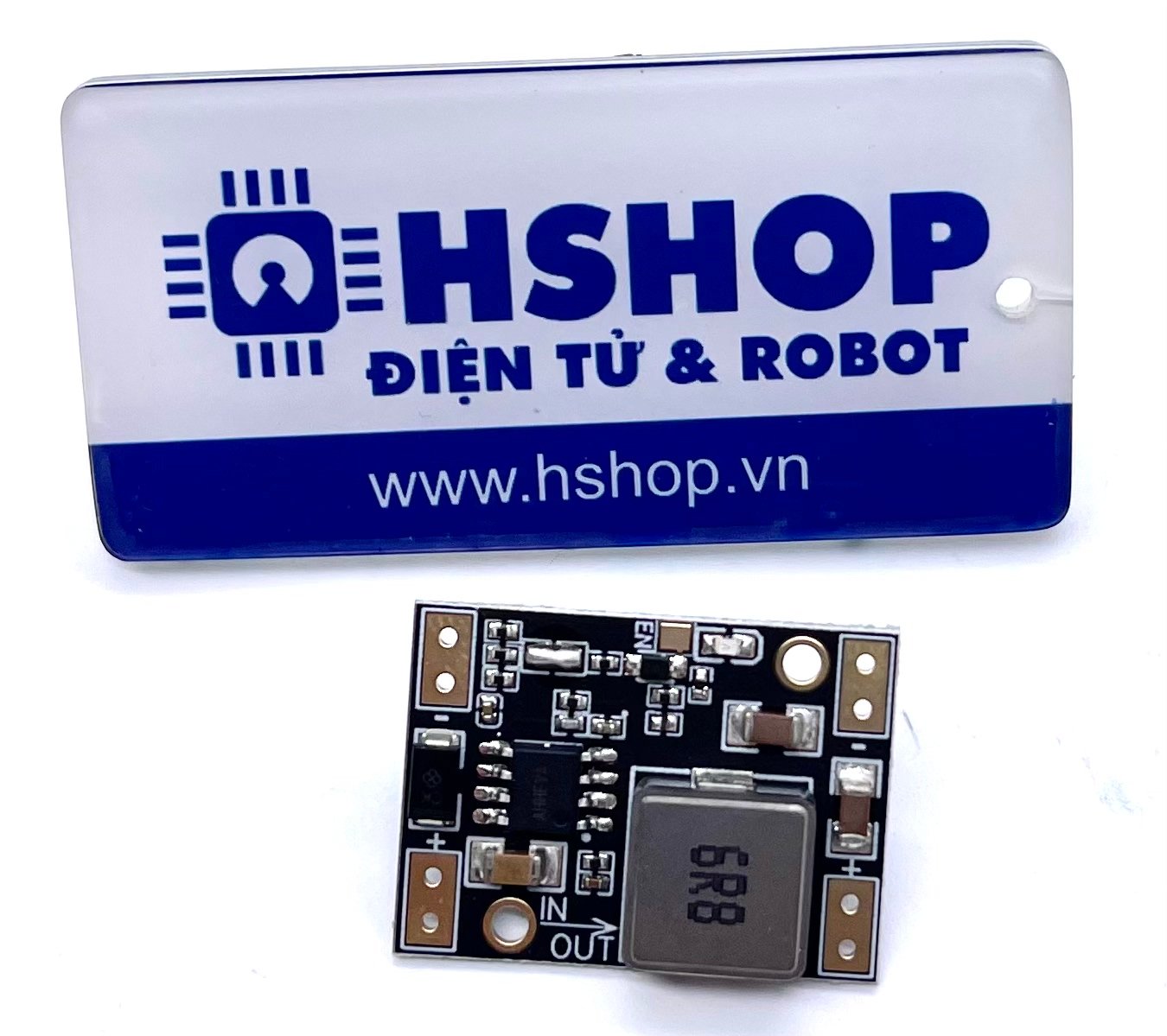

Mạch giảm áp WeAct SY8205 High-current DC Step-down Module được sử dụng để giảm áp nguồn DC với ngõ đầu vào từ 7~30VDC, điện áp ngõ ra tuỳ chỉnh 3.3VDC/5VDC/9VDC/12VDC, mặc định ngõ ra sẽ là là 5VDC với dòng đầu ra tối đa lên đến 5A, mạch có thiết kế nhỏ gọn, hiệu suất chuyển đổi cao sử dụng linh kiện chất lượng tốt.
- Input voltage: 7~30VDC, below 24VDC is recommended
- Output voltage: 3.3VDC/5VDC/9VDC/12VDC, default 5VDC
- Output Current: 5A Max
Feature:
- The default 5VDC output, the voltage can achieve 3.3VDC/9VDC/12VDC output by shorting the back pad.
- Input voltage: 7~30VDC
- Synchronous rectification is adopted, which is more efficient
- The capacitor adopts large-capacity porcelain capacitor, which has a small area, is not easy to damage, and has low heat generation
- It adopts a high-current power inductor, which has low heat generation and strong load capacity
- The low-temperature drift resistor is used as the sampling resistance to improve the stability of the module
- Adopt immersion gold technology
Output Parameters:

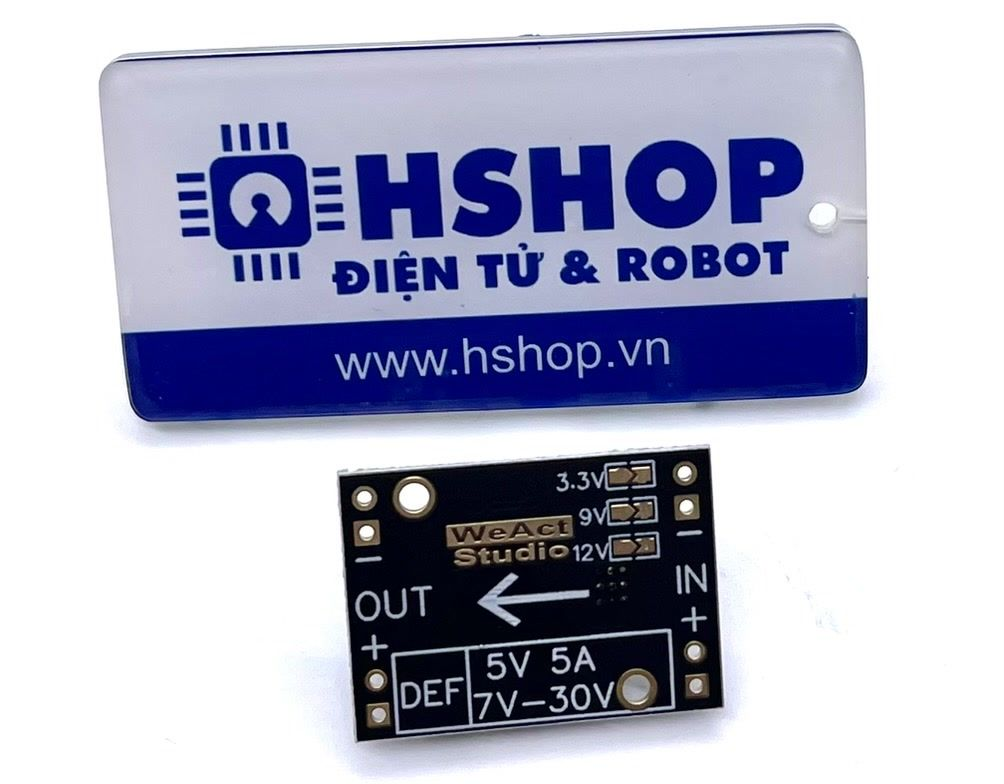

- 3.3VDC/5A (use soldering iron, disconnect the default 5V pad, short the 3.3V pad on the back)
- 5VDC/5A (5V Default)
- 9VDC/2.4A (use soldering iron, disconnect the default 5V pad, short the back 9V pad)
- 12VDC/1.5A (use soldering iron, disconnect the default 5V pad, short the back 12V pad)
Note: Please add fan heat for continuous high current (add heat sink)
