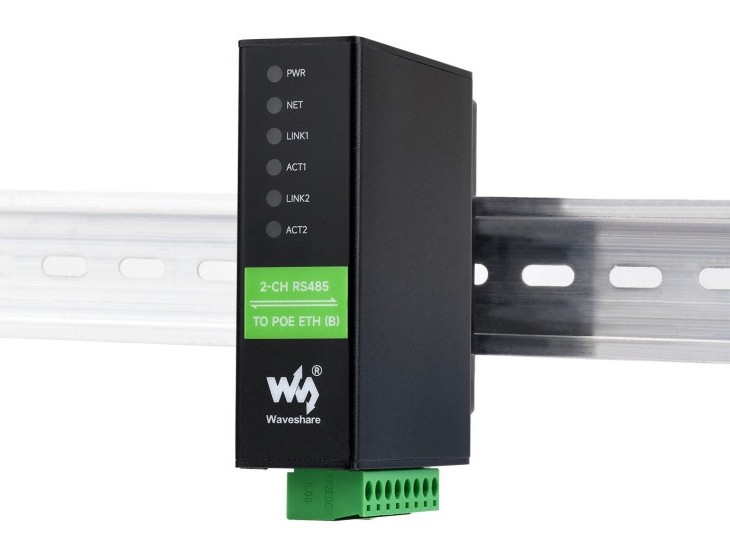

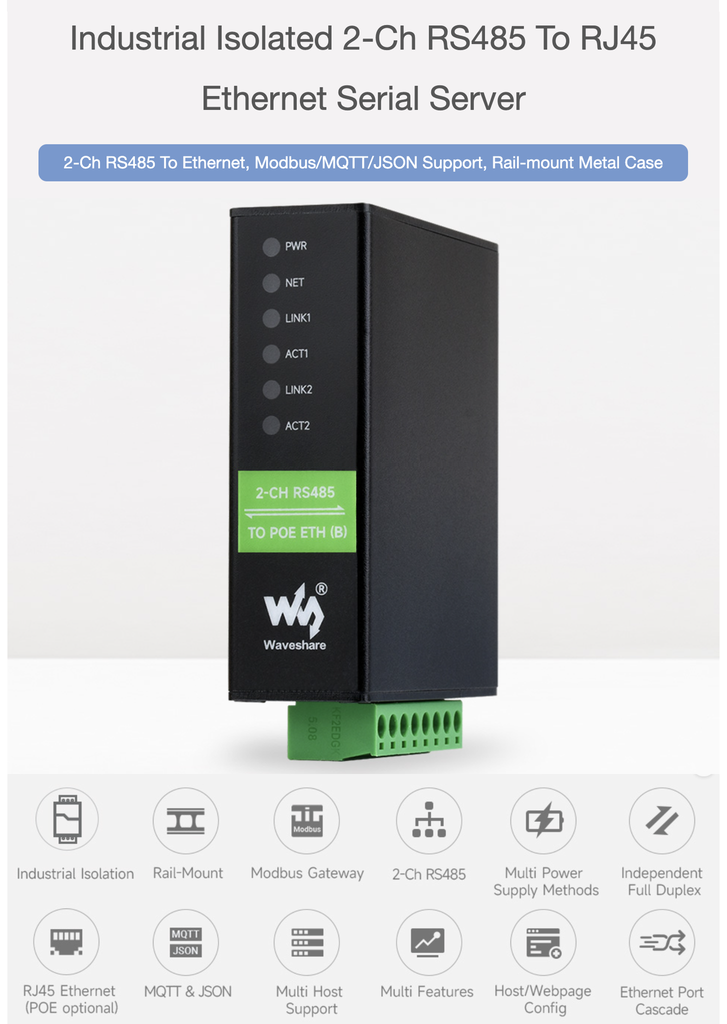

Bộ chuyển Waveshare 2-Ch RS485 To PoE Ethernet (B), TCP/IP to Serial

Software Feature

• Support TCP server, TCP client, UDP mode, and UDP multicast. When used as a TCP client, it also supports TCP server functions. It supports 30 TCP connections as a TCP server and 7 destination IPs as a TCP client.
• The baud rate supports 1200~115200bps, the data bit supports 5~9 bits, and the parity bit can be in five ways: no parity, odd parity, even parity, mark, and space.
• Supports the function of sending MAC address on device connection, which is convenient for cloud management of devices.
• Provides a secondary development kit DLL development library for searching and configuring devices on the computer side.

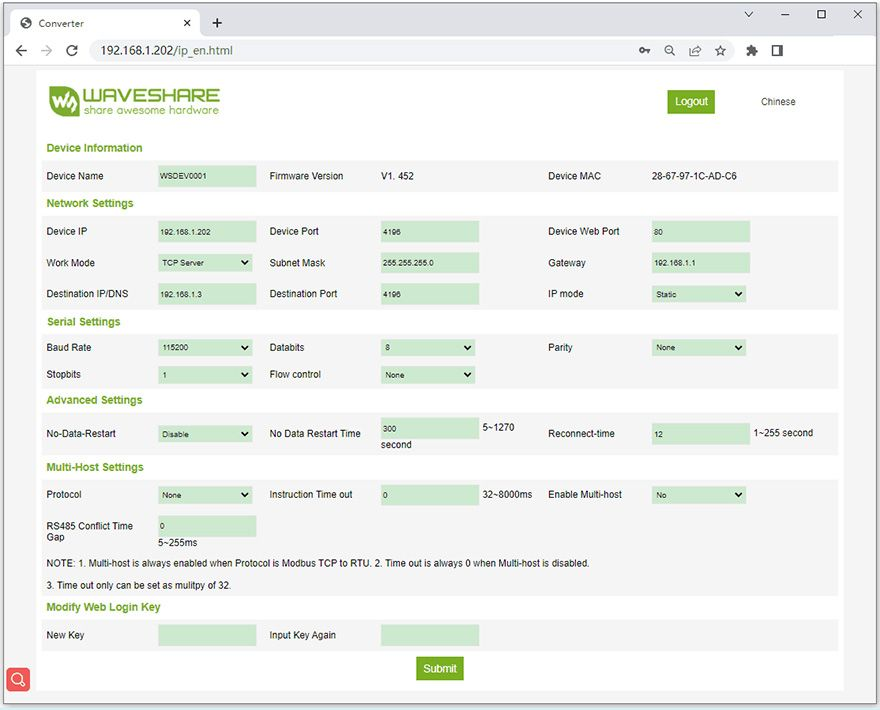

• Support Web browser configuration, support DHCP to obtain IP dynamically, and DNS protocol to connect domain name server address.
• Support cloud remote search for devices, configure device parameters, and upgrade device programs.
• Support viewing the TCP connection status, and the data sending and receiving of the serial port. The virtual serial port also supports the monitoring function.

Advanced Software Function

• Support Modbus gateway function, support Modbus RTU to Modbus TCP. It can support storage-type Modbus, which can automatically collect and store device data; it also supports non-storage-mode Modbus gateways.
• Support multi-host function: In the query mode of one question and one answer, it supports the network port to allow multiple computers to access the same serial port device at the same time.
• Support MQTT gateway function.
• Support JSON to Modbus RTU and 645-meter protocol, support upload data in HTTP POST, HTTP GET format.
• Support NTP protocol to obtain network time, which is used for serial port output, and the latter is used for protocol content upload.
• Supports custom heartbeat package and registration package functions: it can facilitate communication with the cloud and device identification.
• Supports the function that TCP requires password authentication to establish a connection to ensure connection security.
• Support the data transmission and delivery function with http, and the cloud can directly use the GET command of http to communicate with the serial port of the device.

Application

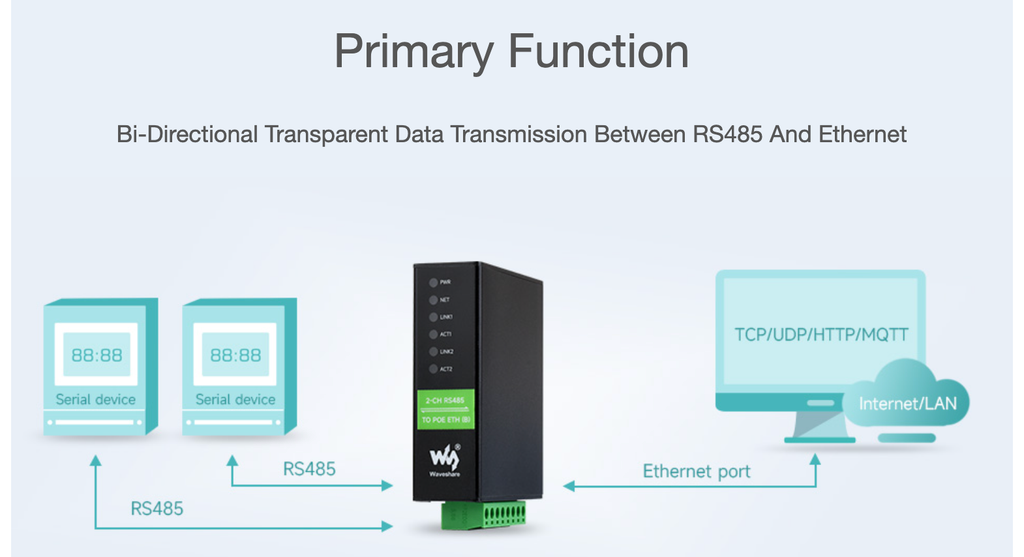

• For connecting the device and the cloud terminal as the IoT gateway.
• Electricity, smart instruments, and energy consumption monitor.
• Remote monitoring and program download for various automation PLCs.
• Various configuration software and equipment communication interfaces.
• Networking of equipment in the field of access control and security.

1. 2-CH RS485 TO POE ETH (B) x1
