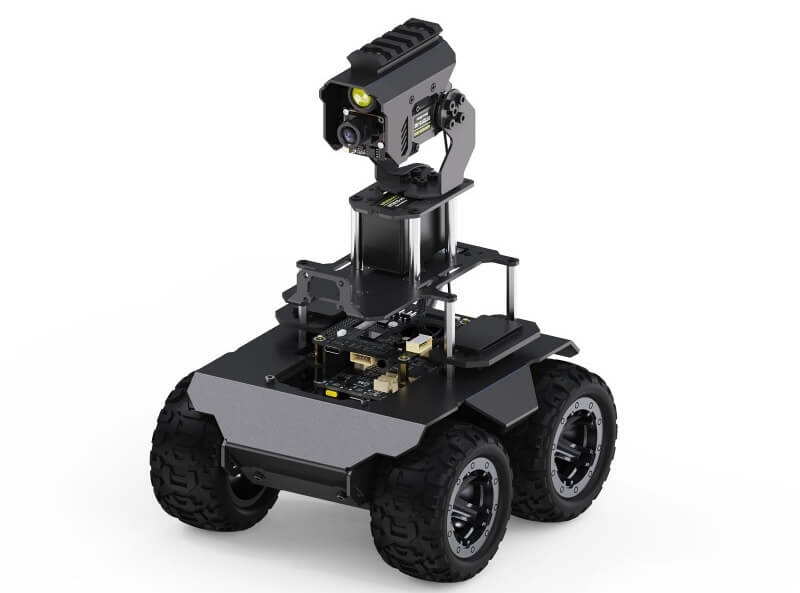

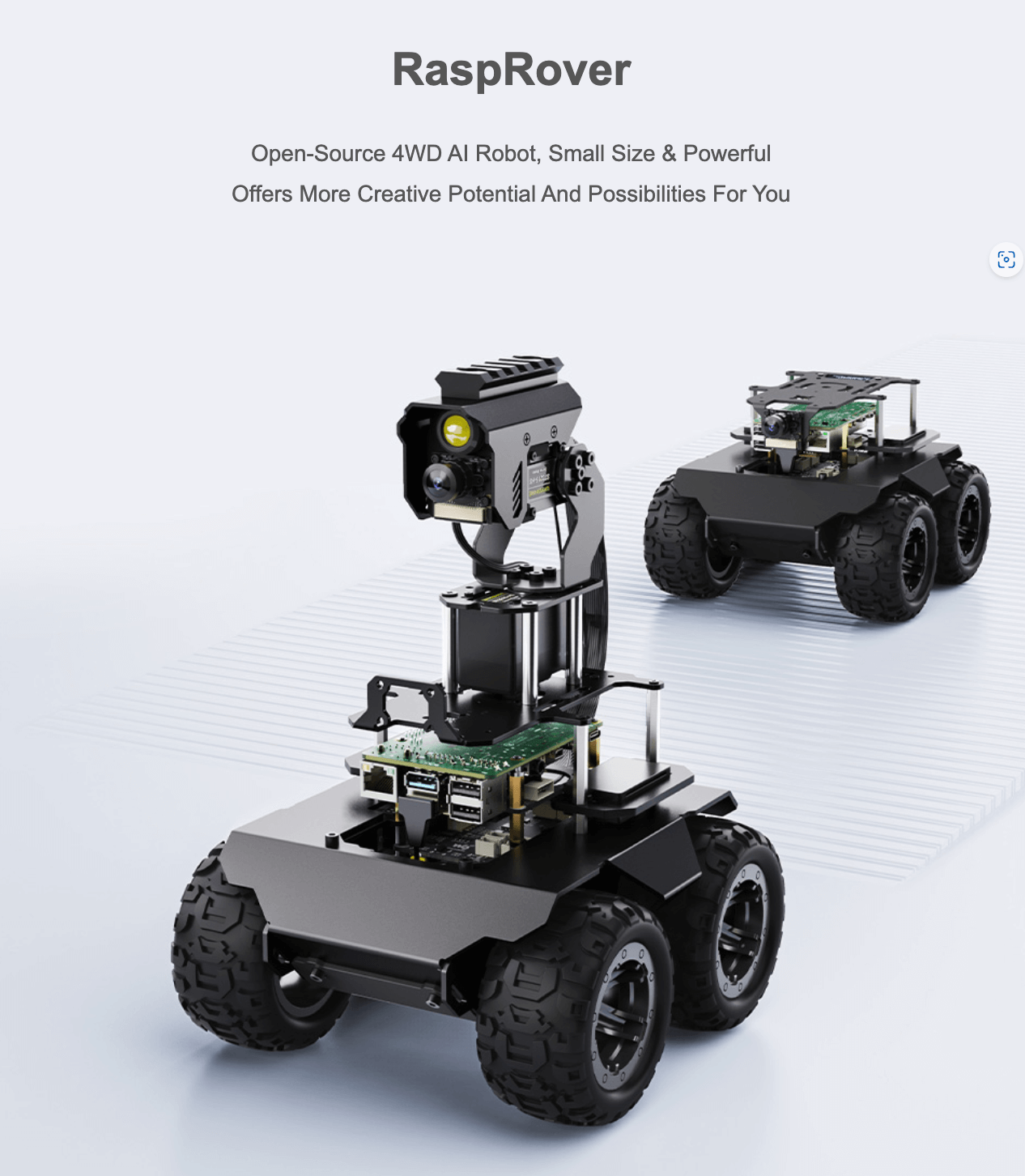

RaspRover Open-source 4WD AI Robot for Raspberry Pi 5

Lưu ý: robot không đi kèm mạch Raspberry Pi 5, Quý Khách cần mua thêm theo link dưới đây:

• Máy tính Raspberry Pi 5 RAM 4GB (Made in UK)
• Máy tính Raspberry Pi 5 RAM 8GB (Made in UK)

The RaspRover is an AI robot designed for exploration and creation, seamlessly connecting your imagination with reality. Suitable for tech enthusiasts, makers, or beginners in programming, it is your ideal choice for exploring the world of intelligent technology.

Equipped with the high-performance Raspberry Pi computer to meet the challenges of complex strategies and functions, and inspire your creativity. Adopts dual-controller design, combines the high-level AI functions of the host controller with the high-frequency basic operations of the sub controller, making every operation accurate and smooth.

Easy to be controlled remotely via RaspRover Web Application without downloading any software, just open your browser and start your journey. Supports high-frame rate real-time video transmission and multiple AI Computer Vision functions, the RaspRover is an ideal platform to realize your ideas and creativity!

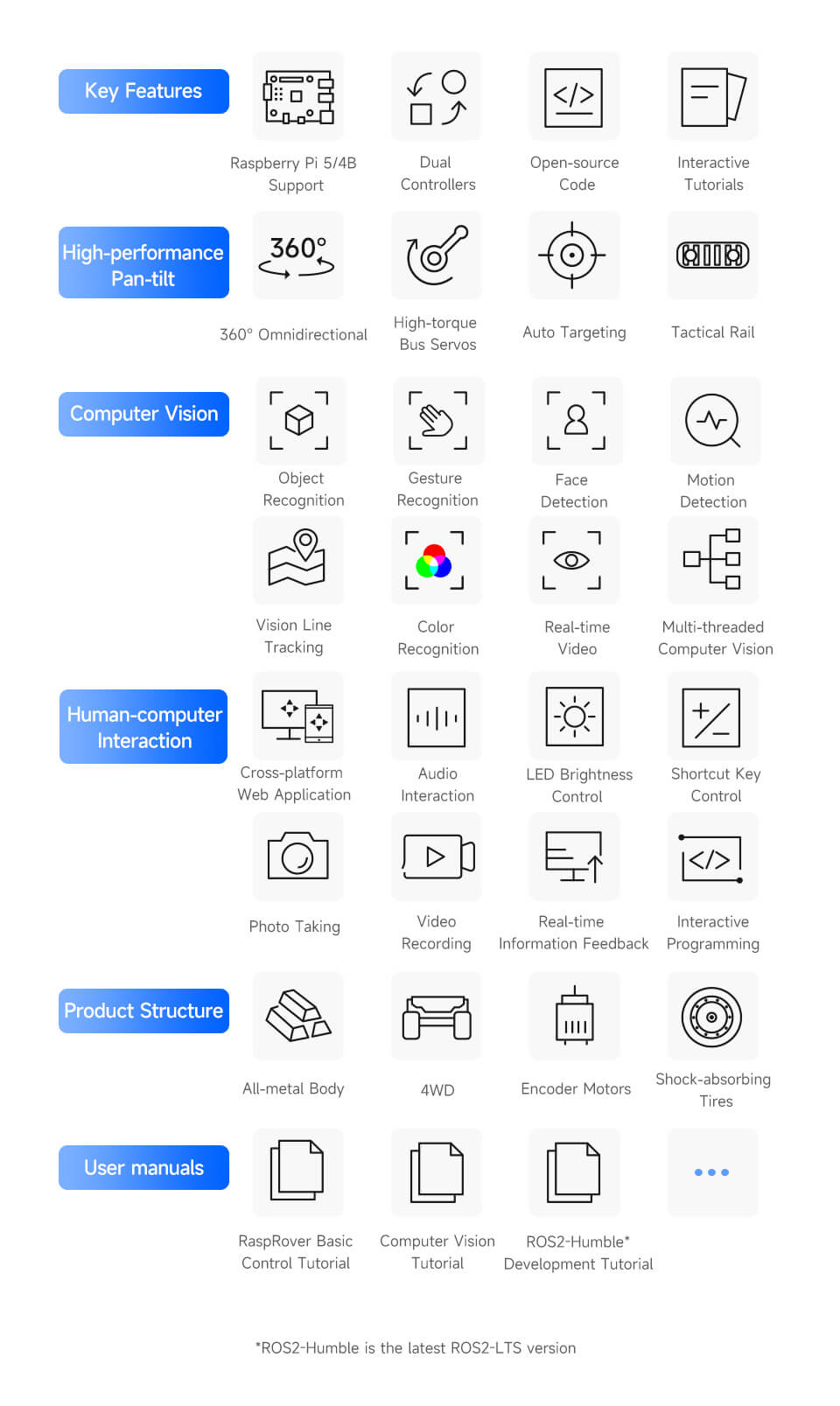

Features

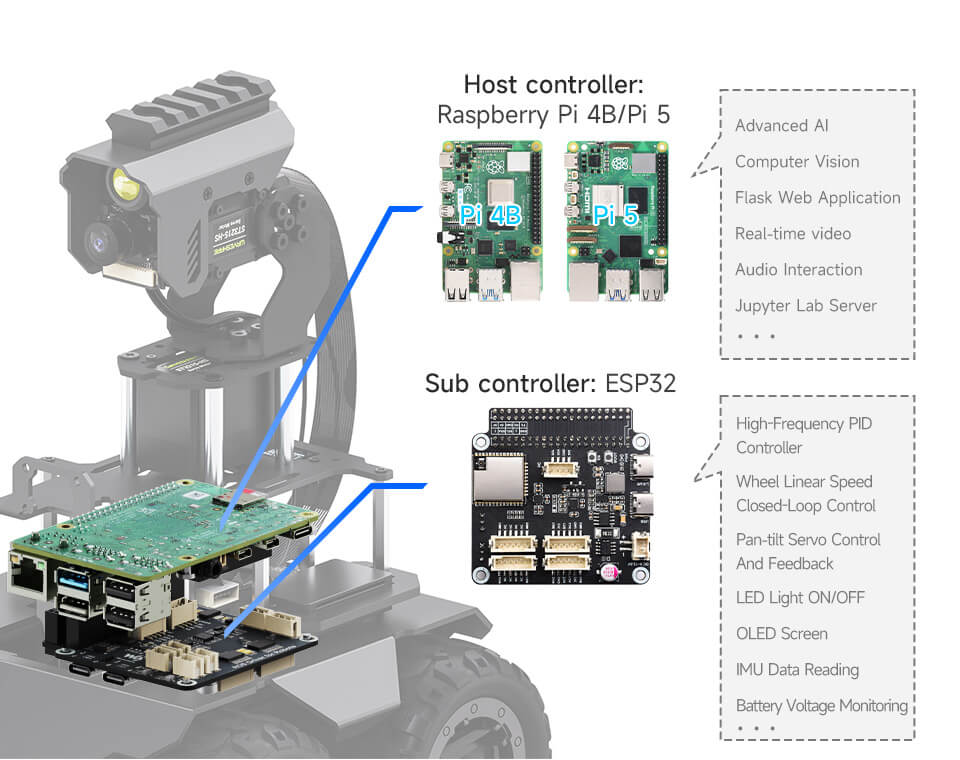

• High-performance Dual-controller Structure: The host controller adopts Raspberry Pi 4B / 5 for AI vision and strategy planning, and the sub-controller uses ESP32 for motion PID control and sensor data processing.
• Open-source Demo: The host system is based on the latest Raspberry Pi OS (Debian Bookworm), provides WEB application based on Flask and Python, open-source for all demos, easier for users to get started quickly for learning and secondary development. The two-layer architecture makes the robot run more efficiently.
• Rich Tutorials: Provides JupyterLab interactive tutorials, graphic tutorials, and video tutorials, and users can learn how to control the robot while programming.

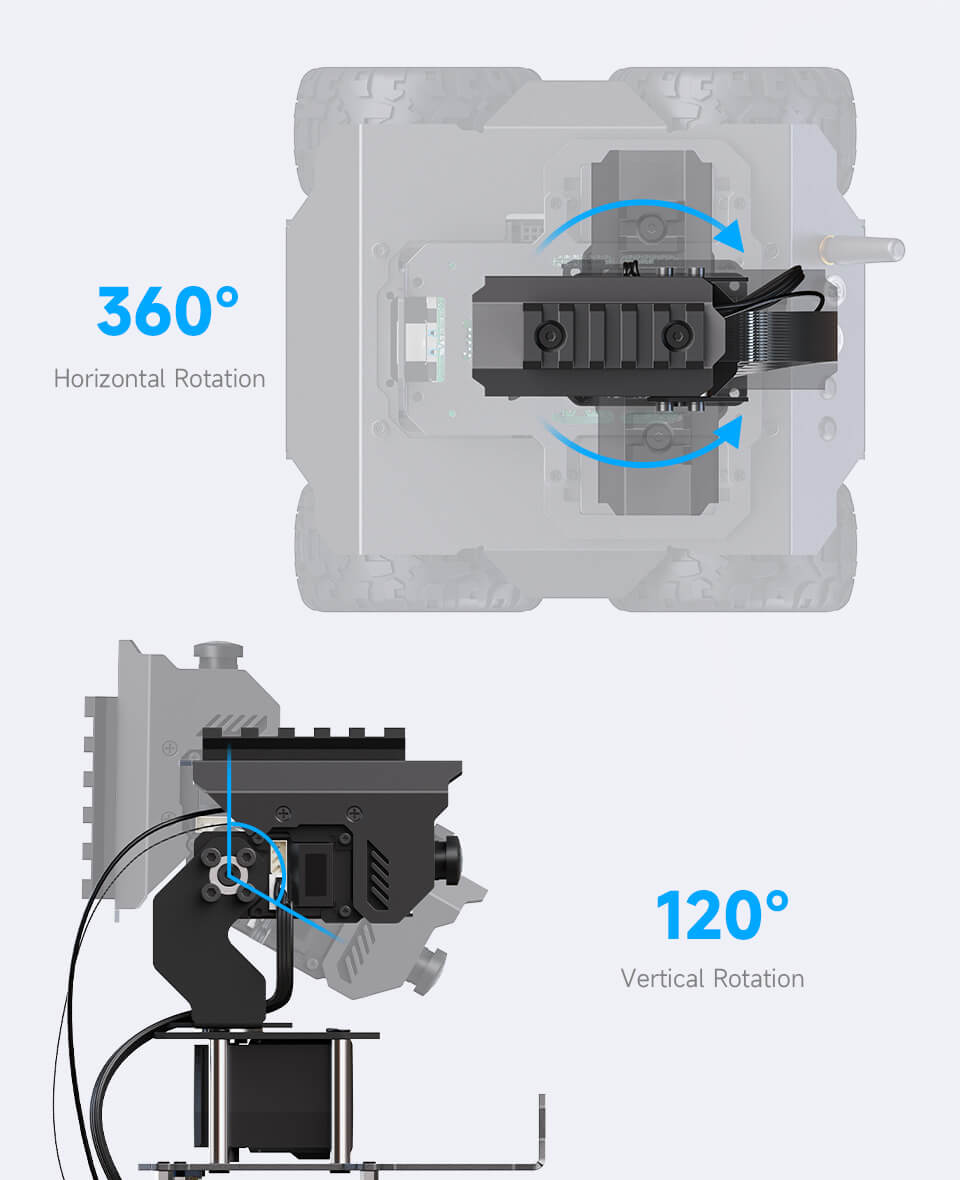

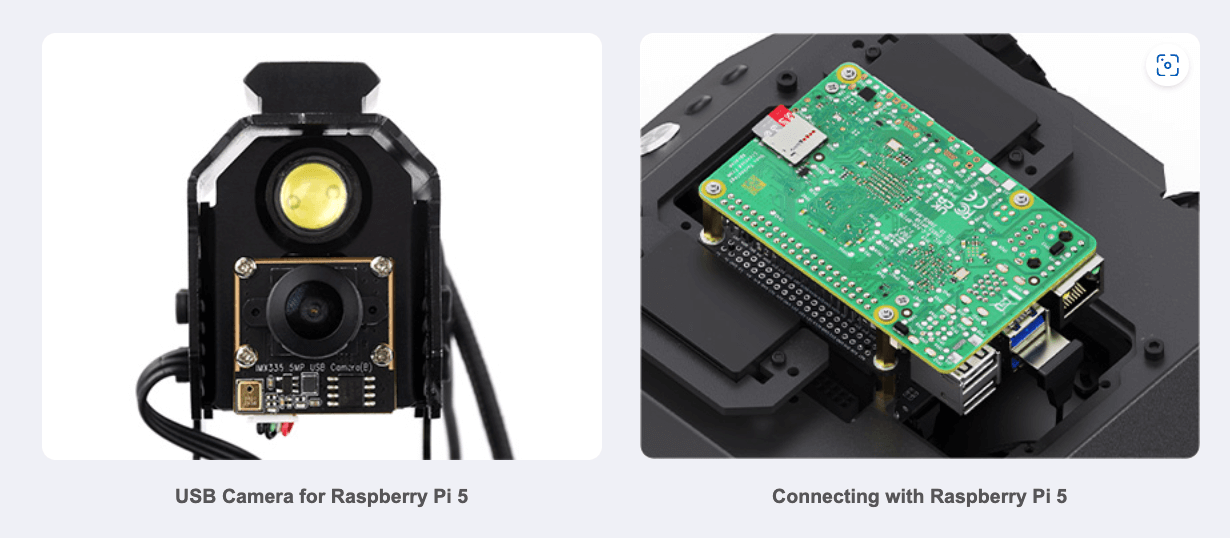

• Wide Viewing Angle: Optoinal for 2DOF high-torque flexible pan-tilt, providing 360° omni-directional observing angle, all kits come with a 160° ultra-wide 5MP camera for capturing every detail.
• Robot Computer Vision: Integrates robot computer vision functions such as color, object, gesture recognition, face recognition, and motion detection, supports expanding for more applications.
• Abundant Interaction: Real-time video streaming, digital zoom, photo, video, and other functions, and WEB application of real-time video functions and robot information displayed on the screen to improve the user interaction experience.
• Cross-platform Web APP Remote Control: Supports cross-platform remote control via Web application, no App installation required. Supports using Tunneling Service such as Ngrok, Cpolar, or LocalTunnel to expose the local network service of the robot to the Internet so that you can control the robot from anywhere.
• Expandability: Reserved space on the mounting plate and comes with a tactical rail, more convenient for expanding other tactical peripherals; Onboard 12V switch interfaces on the driver board for controlling other peripherals such as Electric Gel Ball Blaster Surge, supports installing 4G / 5G modules for more possibilities.
• Durable Structure: 2mm thickness all aluminum alloy body, providing excellent rigid structure and durability.
• High-performance Driving Motor: Equipped with 4x N20 encoder motors, enabling closed-loop speed control. With a maximum speed of 0.65m/s, it delivers robust power.
• All-Drive and High-Quality Tires: The chassis is equipped with a four-wheel drive system with soft anti-skid rubber tires, ensuring stable performance in various terrains.
• Lasting Power: Built-in 3S lithium UPS power supply module (the batteries are NOT included), supports charging and discharging at the same time to ensure continuous standby time.

Notices

Please read the following content before using:

1. 3x 18650 lithium batteries are required and need to be purchased separately to ensure normal operation of the 3S UPS module. And a Raspberry Pi is required and needs to be installed independently if you are using Acce version.
2. The onboard LED warning indicators of the 3S UPS module will light on if the related battery is reversely connected. Do not charge the module when the batteries are reversed, otherwise, it may lead to explosion.
3. This product can not suffer severe impact and is not waterproof.
4. Do not manually rotate the wheels. For high-gear reduction motors, manually rotating the wheels may cause damage to the gearbox.

SKU: 26831
Part Number: RaspRover PT PI5 AI Kit Acce (EN)

Trang chủ nhà sản xuất và hướng dẫn sử dụng.

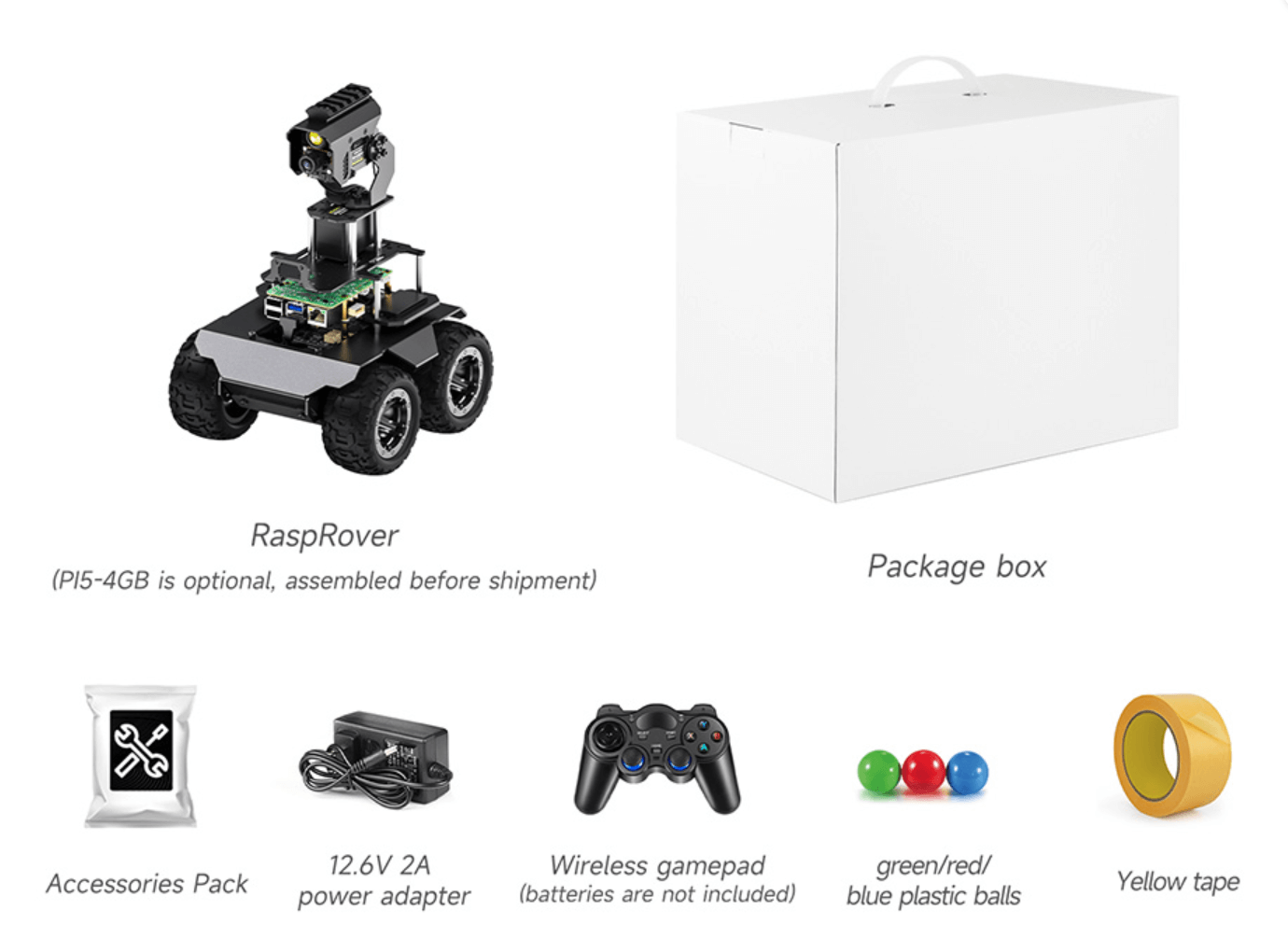

Bộ sản phẩm bao gồm:
