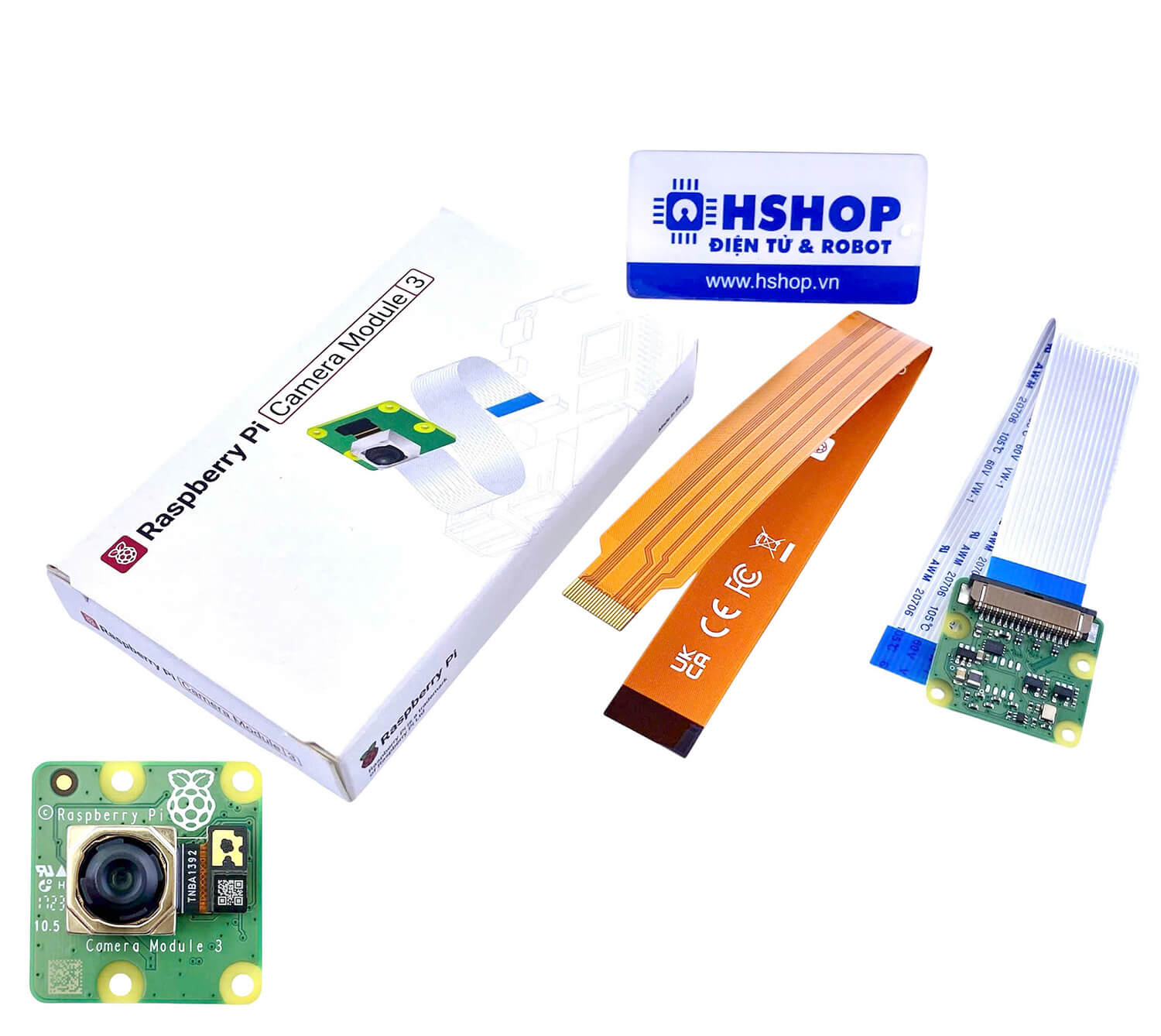

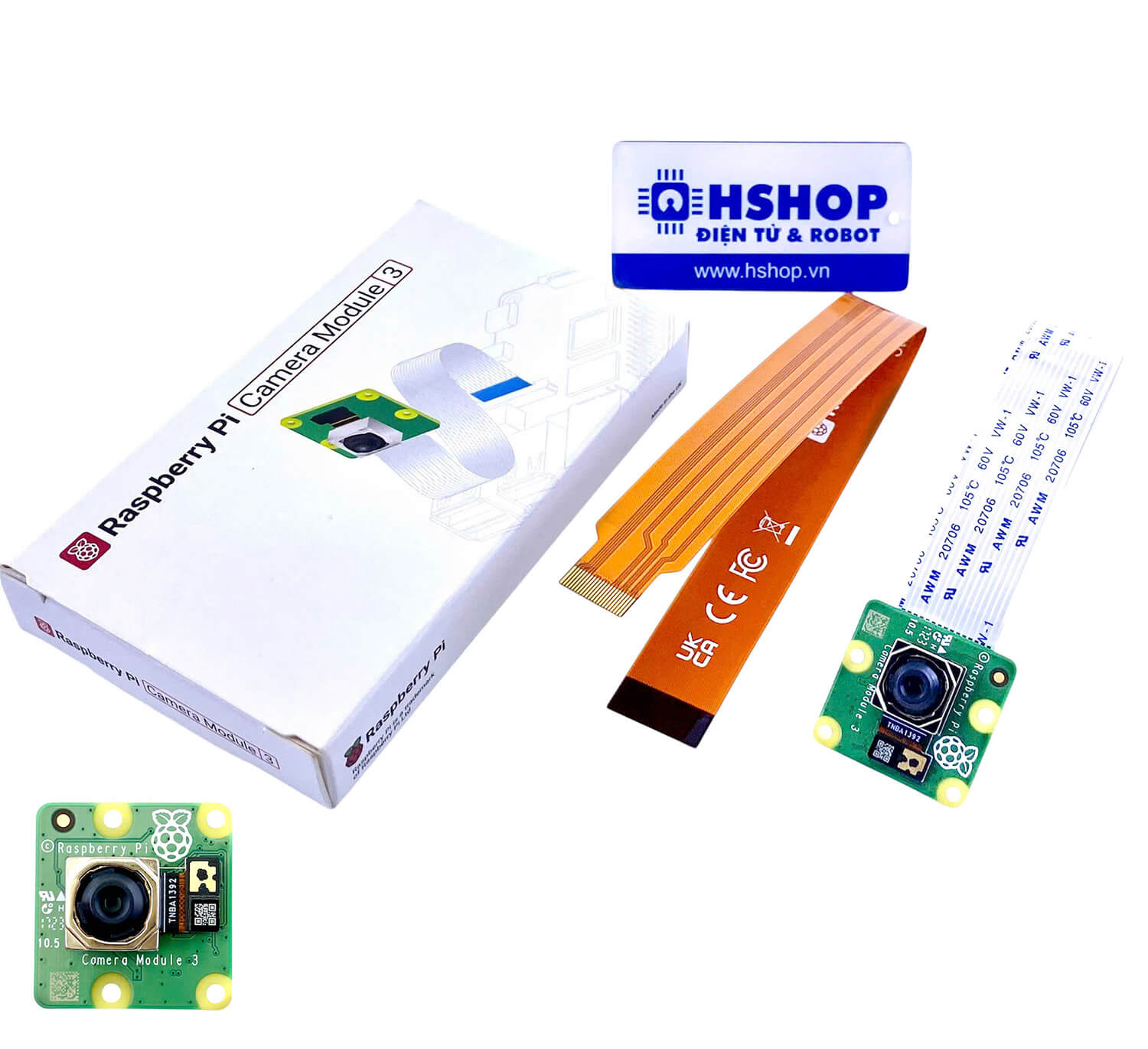

Raspberry Pi Camera Module 3 Standard IMX708 12MP sensor and autofocus

Lưu ý:

• Nếu sử dụng cho Raspberry Pi 5, Raspberry Pi Zero, Raspberry Pi Compute Module,...hoặc Jetson Orin Nano sử dụng cổng CSI 22 Pin 0.5mm thì cần mua thêm cáp chuyển CSI FPC 15 Pin 1.0mm to 22 Pin 0.5mm for Raspberry Pi / Jetson Nano – Hshop.vn.
• Cảm biến hình ảnh trên Camera rất nhạy cảm với tĩnh điện nên khi sử dụng Quý Khách tránh tiếp xúc trực tiếp tay vào các chân tín hiệu, linh kiện trên mạch, hạn chế tháo lắp các cổng kết nối cảm biến và đảm bảo ngắt điện thi thao tác kết nối để tránh làm cháy Camera. Hshop.vn tặng kèm Quý Khách khi mua hàng vỏ case Mica để chống tĩnh điện làm hư cảm biến và bảo vệ mạch.


Raspberry Pi Camera Module 3 is a compact camera from Raspberry Pi. It offers an IMX708 12-megapixel sensor with HDR, and features phase detection autofocus. Camera Module 3 is available in standard and wide-angle variants, both of which are available with or without an infrared cut filter.

Camera Module 3 can be used to take full HD video as well as stills photographs, and features an HDR mode up to 3 megapixels. Its operation is fully supported by the libcamera library, including Camera Module 3’s rapid autofocus feature: this makes it easy for beginners to use, while offering plenty for advanced users. Camera Module 3 is compatible with all Raspberry Pi computers.

The PCB size and mounting holes remain the same as for Camera Module 2. The Z dimension differs: due to the improved optics, Camera Module 3 is several millimetres taller than Camera Module 2.

All variants of Camera Module 3 feature:

• Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
• High signal-to-noise ratio (SNR)
• Built-in 2D Dynamic Defect Pixel Correction (DPC)
• Phase Detection Autofocus (PDAF) for rapid autofocus
• QBC Re-mosaic function
• HDR mode (up to 3 megapixel output)
• CSI-2 serial data output
• 2-wire serial communication (supports I2C fast mode and fast-mode plus)
• 2-wire serial control of focus mechanism

• Model: Raspberry Pi Camera Module 3 Standard IMX708 12MP sensor and autofocus
• Diagonal field of view: 75 degrees
• Horizontal field of view: 66 degrees
• Sensor: Sony IMX708
• Resolution: 11.9 megapixels
• Sensor size: 7.4mm sensor diagonal
• Pixel size: 1.4μm × 1.4μm
• Horizontal/vertical: 4608 × 2592 pixels
• Common video modes: 1080p50, 720p100, 480p120
• Output: RAW10
• IR cut filter: Integrated in standard variants; not present in NoIR variants
• Autofocus system: Phase Detection Autofocus
• Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)
• Ribbon cable length: 200mm
• Connector: FPC 15 Pin 1.0mm Ribon conector
• Operating temperature: 0°C to 50°C
• Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device Electromagnetic Compatibility Directive (EMC) 2014/30/EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
• Production lifetime: Raspberry Pi Camera Module 3 will remain in production until at least January 2030
