Mạch DFRobot Ethernet and PoE Shield for Arduino - W5500 Chipset có chức năng tương đương như mạch Arduino Ethernet Shield 2 vì cùng sử dụng IC giao tiếp Ethernet W5500 cho tốc độ và độ ổn định cao hơn so với các phiên bản cũ sử dụng IC W5100, mạch còn được bổ sung chuẩn PoE giúp cấp nguồn cho Arduino và Shield qua cổng Ethernet mà không cần đến nguồn cấp phụ trợ, ngoài ra mạch còn được tích hợp các cổng nết nối GND-5V-GPIO và các cổng giao tiếp UART, I2C dạng rào đực giúp dễ dàng kết nối và cấp nguồn cho các module, cảm biến đi kèm, mạch tương thích với Arduino Uno, Arduino Mega2560 và các loại Arduino có thiết kế tương tự.

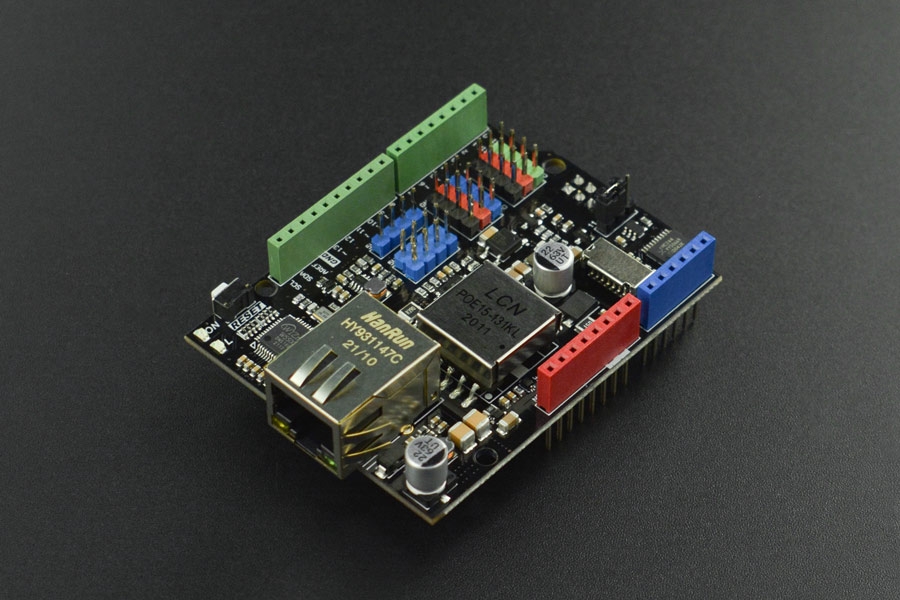

The W5500 Ethernet expansion board is a new member of the DFRobot Ethernet family. It integrates PoE power supply and W5500 Ethernet chip, which can meet the requirements of general IoT projects.
The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems. It enables users to have Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC, and PHY are embedded. The Hardwired TCP/IP is the market-proven technology that supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols. W5500 embeds the 32Kbyte internal memory buffer for the Ethernet packet processing. It’s faster and easier way rather than using any other Embedded Ethernet solution. Besides, the W5500’s SPI supports 80MHz speed and a new efficient SPI protocol for high-speed network communication. In order to reduce the power consumption of the system, W5500 provides WOL (Wake on LAN) and power-down mode.

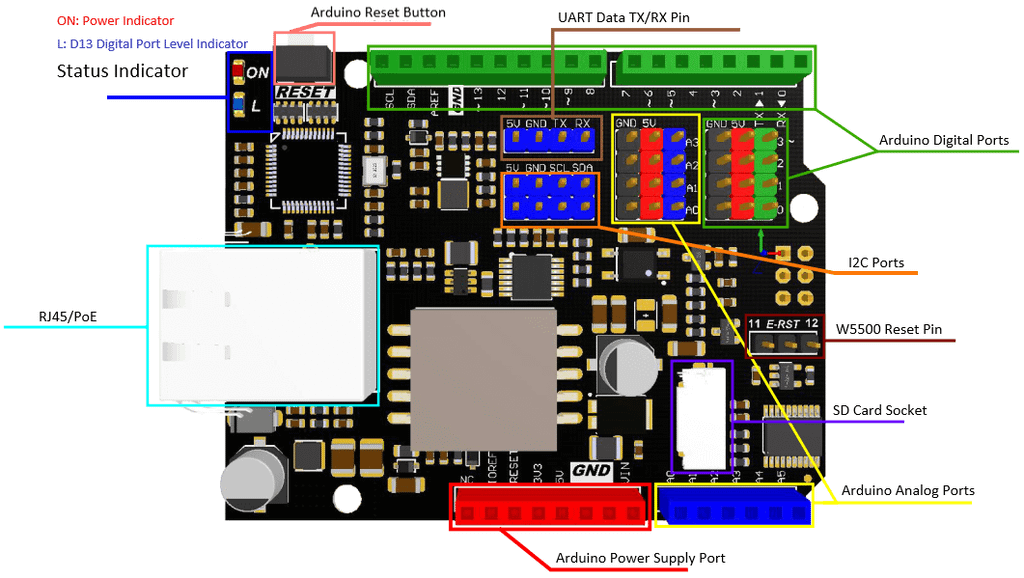

With the same size as Arduino UNO, this W5500 Ethernet expansion board adopts IEEE 802.3at standard-compliant POE Class 0 power classification and offers MicroSD card socket and 2 standard Gravity-4Pin I2C ports, 1 UART, 4 Gravity-3Pin digital ports and 4 analog ports, etc.
Functionally compatible with Arduino Ethernet Shield 2
