Cảm biến mực chất lỏng DFRobot Gravity: Photoelectric High Accuracy Liquid Level Sensor for Arduino sử dụng phương pháp quang học để xác định mực chất lỏng với độ chính xác cao, đầu dò cảm biến có khả năng chống nước và rất dễ gá bắt vào thành bình chứa, thích hợp với các ứng dụng cần xác định mực chất lỏng trong nông nghiệp, quan trắc,...

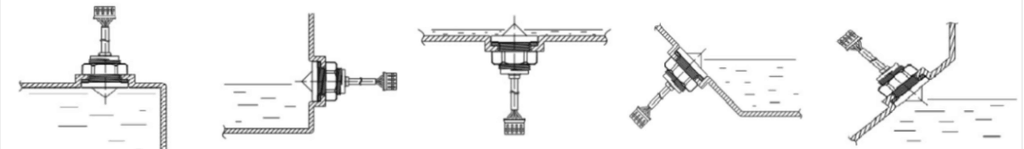

This is a photoelectric water liquid level sensor that is operates using optical principles. The advantages of this photoelectric water liquid level sensor are good sensitivity and no need for mechanical parts - meaning less calibration! The corrosion resistant probe is easily mounted and can handle high temperature and high pressure.

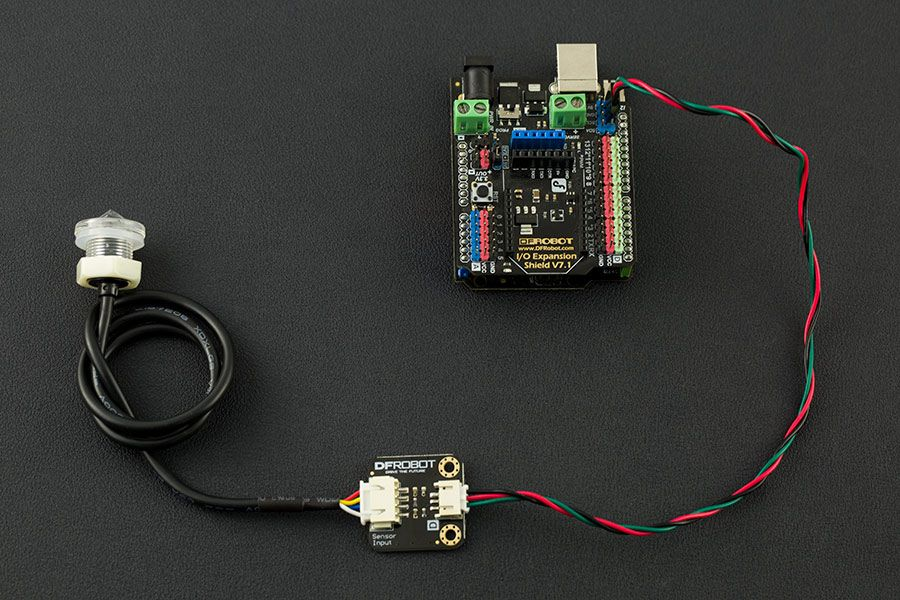

The arduino liquid sensor is equipped with an interface adapter for compatibility with the DFRobot "Gravity" interface. To ease the difficulty of using this arduino liquid sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to Arduino. As this liquid sensor is able to work at 3.3V which makes it compatible with Raspberry Pi, intel edison, joule and curie.
Thông số kỹ thuật:
- SKU: SEN0205
- Model: FS-IR02 DFRobot Gravity: Photoelectric High Accuracy Liquid Level Sensor for Arduino
- Type: Photoelectric liquid level sensor
- Operating voltage: 5 VDC
- Output current: 12 mA
- Working temperature: - 25 ~ 105 ℃
- Low level output: < 0.1 V
- High level output: > 4.6 V

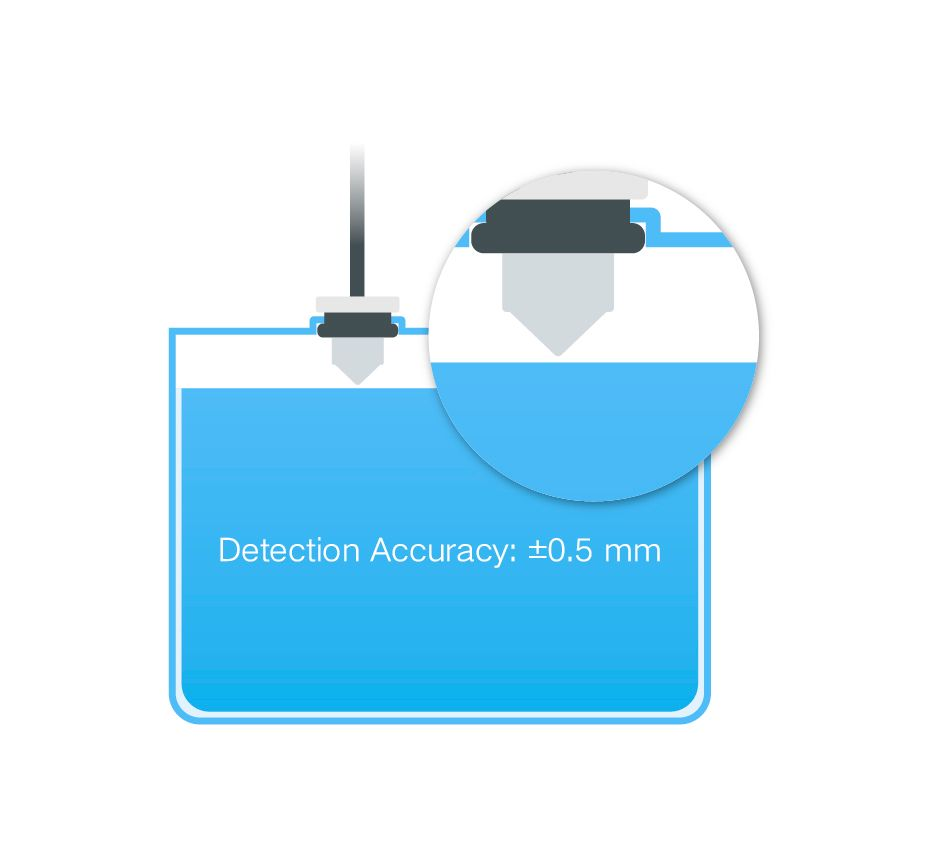

- Liquid level detection accuracy: ±0.5 mm
- Material: PC
- Measuring range: No limit
- Life: 50,000 hours
- Dimension: 28 x 28 mm/ 1.1 x 1.1 inches
- Cable Length: 450mm
- Weight: 26g

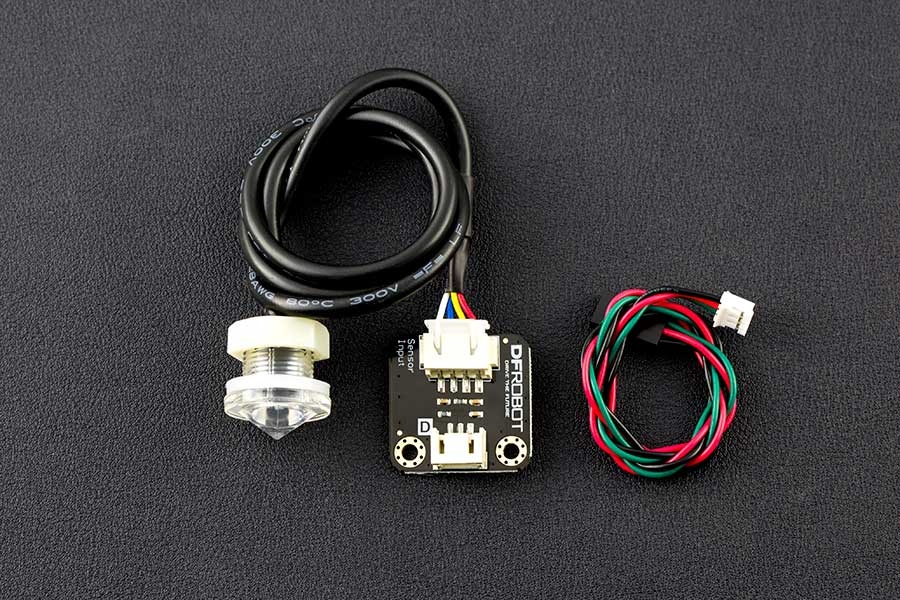

Bộ sản phẩm bao gồm:
- Liquid Level Sensor-FS-IR02 probe x1
- Liquid Level Sensor convert board x1
- PH2.0-3P Cable
