Cảm biến khí HCHO DFRobot Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor (Breakout, 0-3ppm)

Cảm biến khí HCHO DFRobot Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor (Breakout, 0-3ppm) được sử dụng để đo nồng độ khí Formaldehyde HCHO có trong không khí, cảm biến sử dụng công nghệ MEMS cho kích thước nhỏ gọn, thời gian khởi động và phản hồi nhanh, tiết kiệm năng lượng vượt trội, cảm biến sử dụng giao tiếp Analog nên có thể dễ dàng đọc giá trị bằng ADC của Vi Điều Khiển.

Xin lưu ý:

• Cần tháo lớp nylon bảo vệ trên bề mặt cảm biến trước khi đo.
• Cảm biến này chỉ có khả năng đo chất lượng, đối với các phép đo định lượng, vui lòng cân nhắc mua loại cảm biến khác.

Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. This sensor qualitatively measures the concentration of formaldehyde gas, making it suitable for applications in air purifiers, HVAC systems, smart wearables, portable detectors, and more.

Precautions for use

• Kindly remove the protective film before usage.
• To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
• Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
• Prevent contamination from alkalis, alkali metal salts, and halogens.
• Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
• Avoid contact with water, condensation, and freezing.
• Minimize excessive vibration, impact, and dropping.
• Please refrain from employing this module in systems that involve personal safety concerns.
• For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

FEATURES

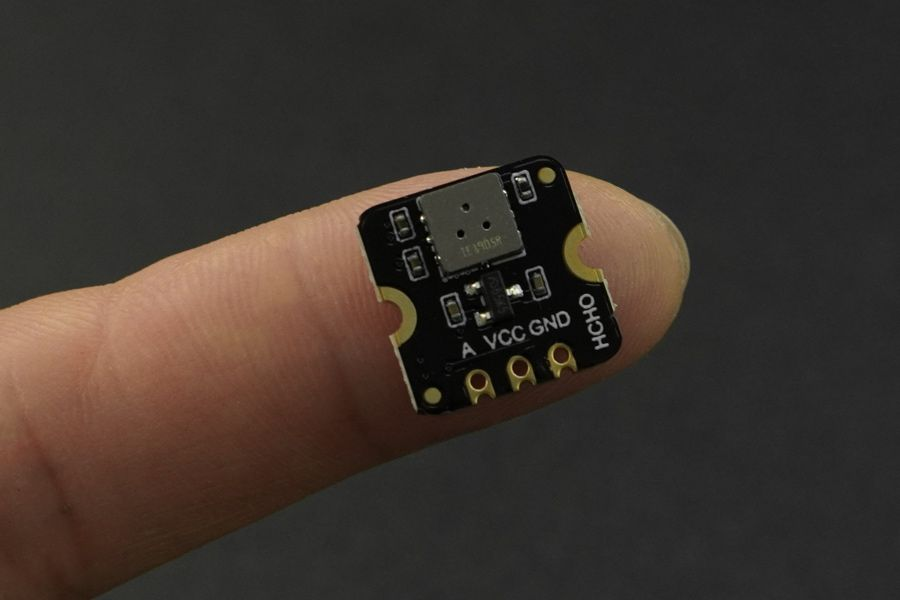

• Compact size, measuring only 13*13*2.5mm
• Low power consumption, operating current ＜20mA
• High sensitivity and rapid response recovery
• Advanced MEMS technology

APPLICATIONS

• Air purifiers
• HVAC systems
• Smart wearables
• Portable detectors

SPECIFICATION

• SKU: SEN0563
• Gas detected: HCHO
• Detection range: 0-3ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0(in air)/Rs(in 0.4ppm HCHO) ≥ 1.8
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥3 years (in air)
• Dimension：13×13 x 2.5mm/ 0.0.51×0.51x0.1"
