Cảm biến khí H2S DFRobot Fermion: MEMS Hydrogen Sulfide H2S Gas Detection Sensor (Breakout, 0.5-50ppm)

Cảm biến khí H2S DFRobot Fermion: MEMS Hydrogen Sulfide H2S Gas Detection Sensor (Breakout, 0.5-50ppm) được sử dụng để đo nồng độ khí Hydrogen Sulfide H2S có trong không khí, cảm biến sử dụng công nghệ MEMS cho kích thước nhỏ gọn, thời gian khởi động và phản hồi nhanh, tiết kiệm năng lượng vượt trội, cảm biến sử dụng giao tiếp Analog nên có thể dễ dàng đọc giá trị bằng ADC của Vi Điều Khiển.

Xin lưu ý:

• Cần tháo lớp nylon bảo vệ trên bề mặt cảm biến trước khi đo.
• Cảm biến này chỉ có khả năng đo chất lượng, đối với các phép đo định lượng, vui lòng cân nhắc mua loại cảm biến: Cảm biến khí H2S DFRobot Gravity: H2S Sensor (Calibrated) - I2C & UART.

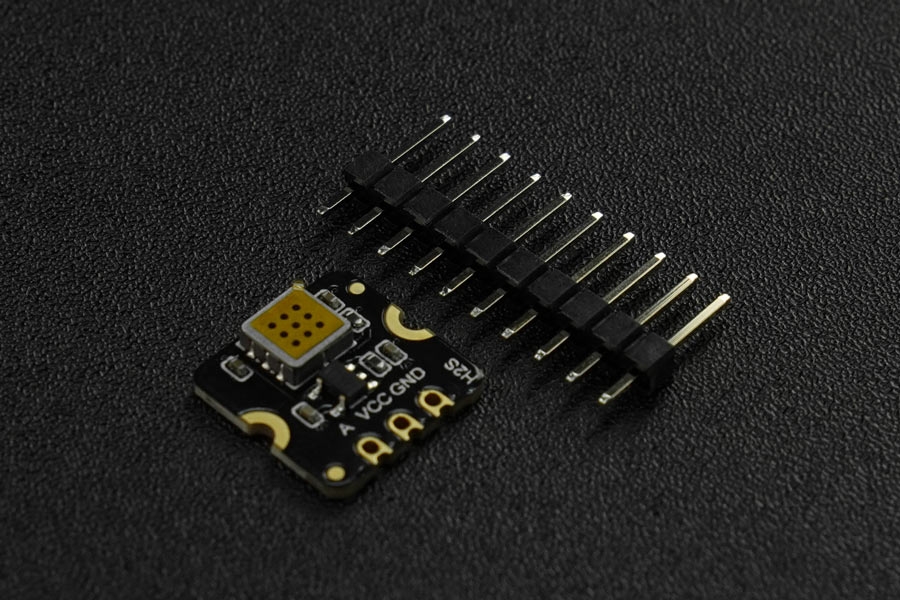

Fermion: MEMS Hydrogen Sulfide H2S Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure the concentration of hydrogen sulfide gas, and is suitable for hydrogen sulfide detection in toilets, sewers, garbage stations and other places.

Precautions for use

• Kindly remove the protective film before usage.
• To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
• Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
• Prevent contamination from alkalis, alkali metal salts, and halogens.
• Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
• Avoid contact with water, condensation, and freezing.
• Minimize excessive vibration, impact, and dropping.
• Please refrain from employing this module in systems that involve personal safety concerns.
• For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

FEATURES

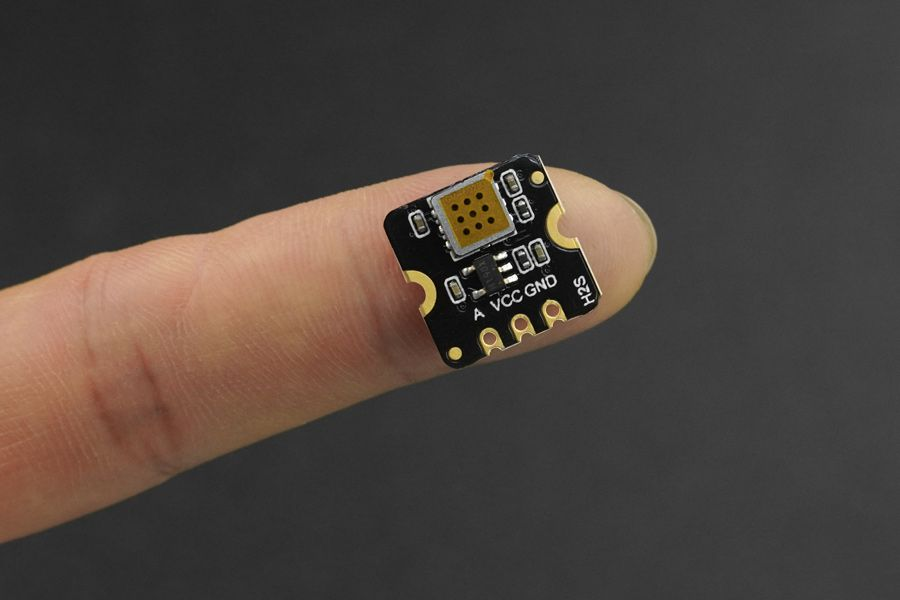

• Compact size, measuring only 13*13*2.5mm
• Low power consumption, operating current ＜20mA
• High sensitivity and rapid response recovery
• Advanced MEMS technology

APPLICATIONS

• Hydrogen sulfide detection in toilets, sewers, garbage stations

SPECIFICATION

• SKU: SEN0568
• Gas detected: Hydrogen Sulfide (H2S), Benzene
• Detection range: 0.5-50ppm
• Operating voltage: 3.3-5V
• Operating current: ＜20mA
• Output signal: Analog voltage
• Sensitivity: R0(in air)/Rs(in 50ppm H2S) ≥ 3
• Operating temperature: -10-50℃
• Operating humidity: 15-90%RH (non-condensing)
• Lifespan: ≥5 years (in air)
• Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1”
