Mạch nRF52 DK, Development kit for Bluetooth LE, Bluetooth mesh, ANT and 2.4 GHz applications

The nRF52 DK is a single-board development kit (DK) for Bluetooth Low Energy, Bluetooth mesh, ANT and 2.4 GHz proprietary applications using the nRF52810 and nRF52832 SoCs.

It facilitates development exploiting all features of the nRF52810 and the nRF52832 SoCs. It includes an NFC antenna that quickly enables utilization of the NFC-A tag peripheral on the nRF52832. The kit gives access to all I/Os and interfaces via edge connectors and has 4 LEDs and 4 buttons which are userprogrammable.

The kit is compatible with the Arduino Uno Revision 3 standard, making it possible to use 3rd-party shields that are compatible to this standard.

It comes with an on-board SEGGER J-Link debugger allowing programming and debugging both the on-board SoC and external SoCs through the debug out header.

It can be powered by USB or by an external source, but also includes a CR2032 battery holder, enabling in-field testing of prototypes.

A range of software examples are available from the nRF5 software development kit (SDK) to support Bluetooth LE, ANT and 2.4 GHz applications. For Bluetooth mesh development, check out nRF5 SDK for Mesh. SEGGER Embedded Studio, Keil, GCC and IAR IDEs and toolchains are supported.

KEY FEATURES

• Affordable, rapid prototyping and development solution for the nRF52810 and nRF52832 SoCs
• Supports Bluetooth LE, Bluetooth mesh, ANT and 2.4 GHz proprietary development
• Bluetooth 5 feature support: 2 Mbps, Advertising Extensions and Channel Selection Algoritm #2 (CSA #2)
• Arm® Cortex™ M4 with floating point support
• DSP instruction set
• Arduino Uno Rev. 3 compatible for use with 3rd party shields
• All I/Os and interfaces are available via connectors
• Segger J-Link OB programming/debugging supported
• Support for programming/debugging of external boards
• Integrated 2.4 GHz PCB antenna
• NFC antenna
• Connector for external NFC antenna
• Connector for RF measurements
• Pins for power consumption measurements
• Coin-cell battery holder
• 1.7-3.6 V supplied from battery, USB or external

APPLICATIONS

• Internet of Things (IoT)
• Wearables
• Appcessories
• Desktop peripherals
• Remote controls
• Sports & medical
• Smartwatch
• Smarthome sensors
• Lighting
• Toys
• Industrial sensors
• A4WP wireless charging
• Beacons

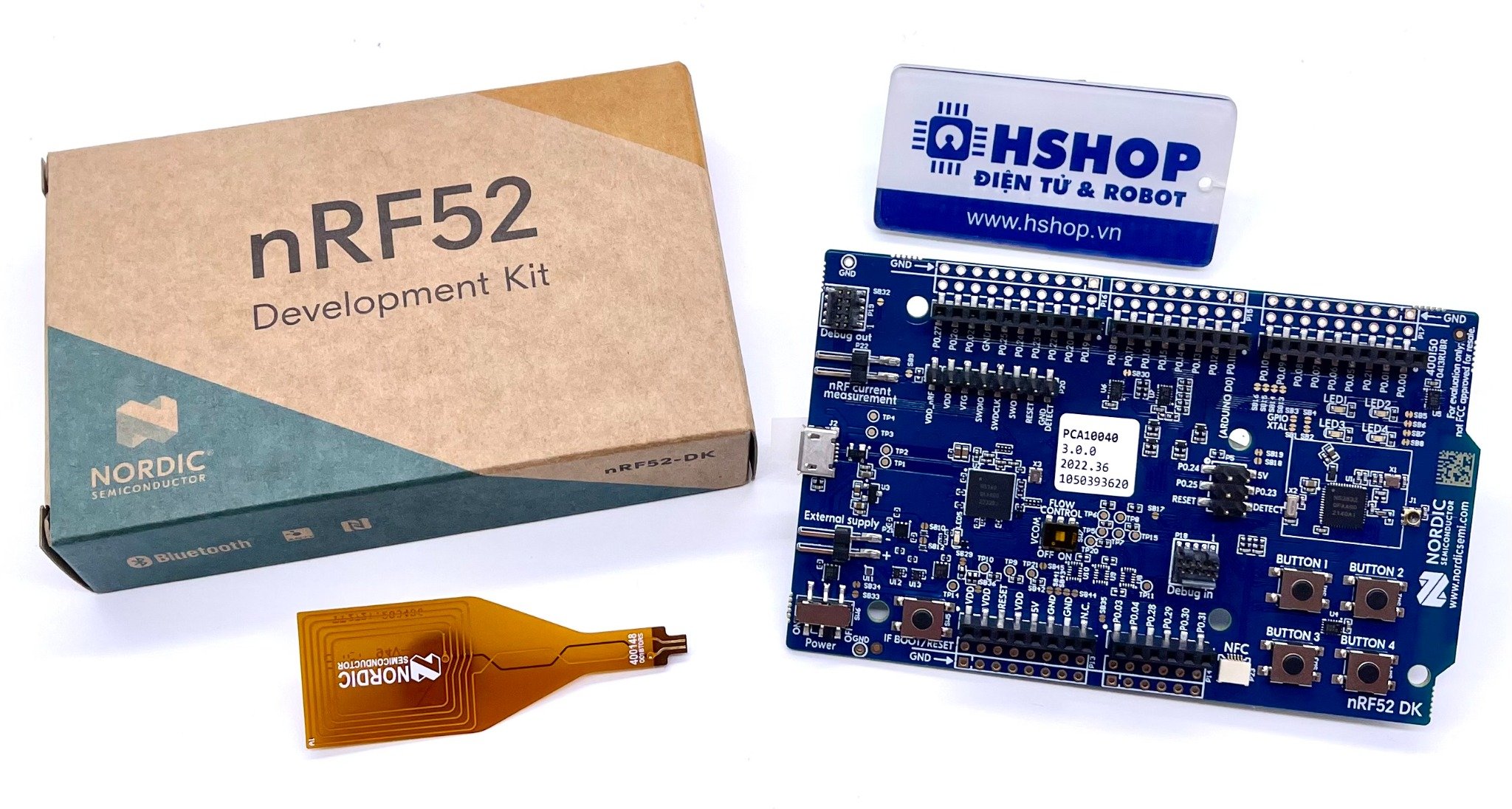

KIT CONTENT

• nRF52 DK board
• 2032 battery
• NFC antenna
