Kit phát triển 8051 WeAct WCH CH552 Core Board

Kit phát triển 8051 WeAct WCH CH552 Core Board có thiết kế nhỏ gọn được sản xuất bởi WeAct Studio dựa trên Vi điều khiển WCH CH552 với nhân xử lý 8051 được cải tiến về tốc độ và ngoại vi nhưng có giá thành rất thấp, phù hợp với các dự án cần tối ưu về chi phí.

CH552 is an enhanced E8051 kernel microcontroller compatible with MCS51 instruction set. 79% of its instructions are single-byte single-cycle instructions, and the average instruction speed is 8 ~ 15 times faster than the standard MCS51.

CH552 supports up to 24MHz system frequency, built-in 16K program ROM and 256 bytes of internal iRAM and 1K bytes of in-chip xRAM, xRAM supports DMA direct memory access.

CH552 has built-in ADC analog-to-digital conversion, touch key capacitance detection, three groups of timer and signal capture and PWM, dual asynchronous serial port, SPI, USB device controller and full speed transceiver and other function modules.

Datalink/Download Link

GitHub - WeActStudio/WeActStudio.CH552CoreBoard: Lowcost mcs51 CH552 Mini Core Board

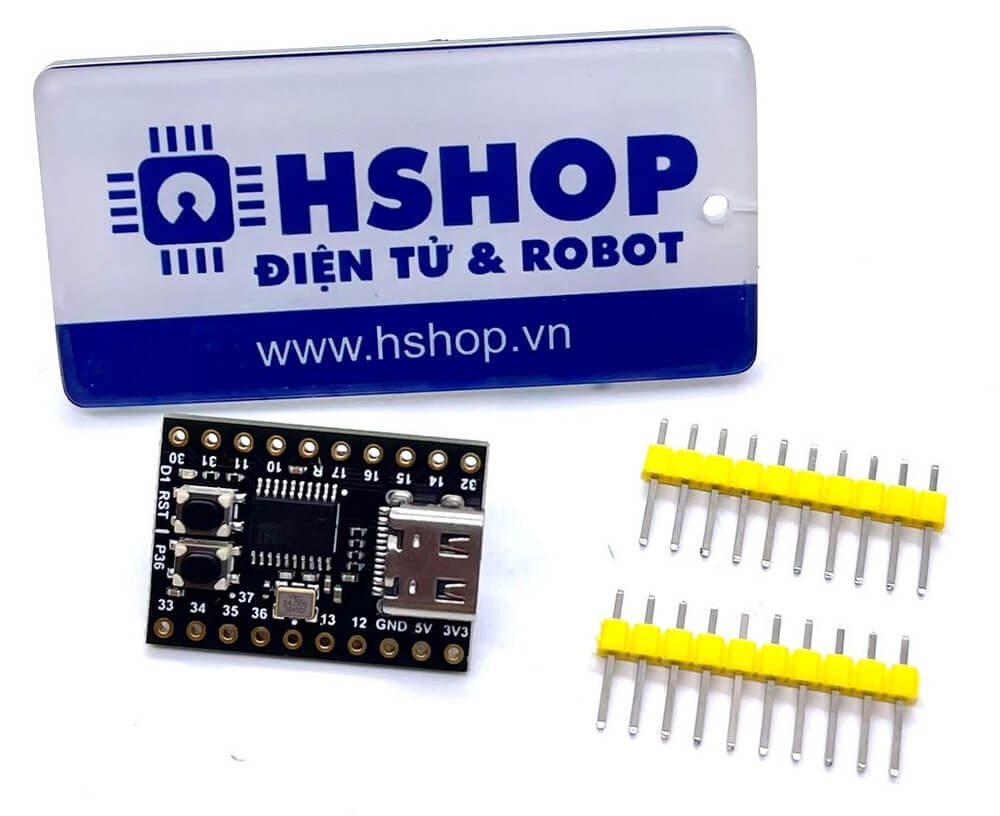

Package Details

• CH552 Core Board * 1
• 2.54mm 10Pin Header * 2

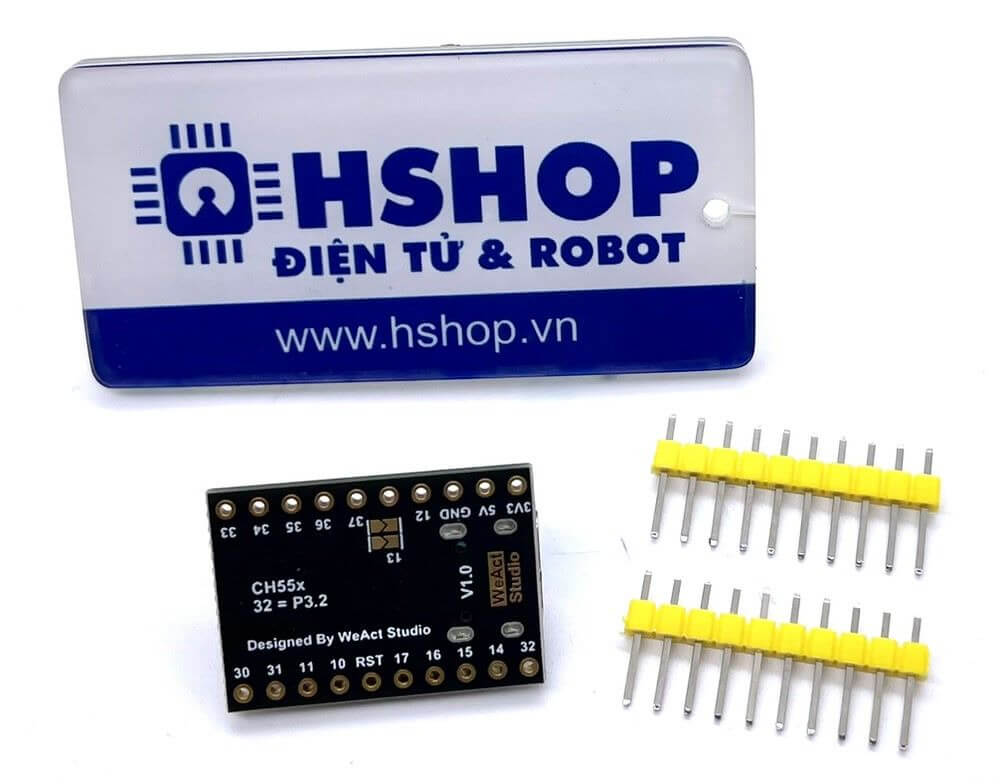

CH552 core board Designed by WeAct Studio

The CH552 core board supports three development modes

1. Keil provides the lighting example, RTXTiny2 example
2. Arduino provides lighting routines and environment configuration instructions
3. SDCC provides lighting example

More examples can be found in reference 04-WCH_EVT

CH552 core board program burning download

1. Support USB download, no burning device
2. Supports serial port download
3. The Keil example supports holding down the P36 key, clicking the RST key, and releasing the P36 key 0.5 seconds later to enter the burning mode
