Mạch CNC BOB MACH3 LPT tích hợp sẵn 3 Driver TB6560

Nhà sản xuất: Import
Giá bán

Key Features

  • Supports MACH3, KCAM4, EMC2 etc…
  • Resolution 1, 1/2, 1/8, 1/16 micro stepping output.
  • Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment.
  • Full closed-type optical isolation to protect the user's computer and equipment.
  • Absolute Maximum Ratings: 3.5 A/phase motor output, Rated voltage: DC12-DC36V.
  • Current adjustable at 100%, 75%, 50%, 20% of full current by on-board switch.
  • Limit/Home Signal input.
  • Built-in overheat protection circuit: Thermal shutdown (TSD).
  • 4 channel inputs interface- Can be used for XYZ limit and emergency stop.
  • Protect the computer by using the isolating power(1000V DCDC) and the optoelectronic coupler, the drive board are separated from the computer.

General Specification

  • Voltage Selection:
    a. 12-16V DC power supply for Nema 17 stepper motors
    b. 16-24V DC power supply for Nema 23 stepper motors
    c. 24-30V DC power supply for Nema 34 stepper motors
  • The driver is specially designed for stepper motors with rated current from 0.5A to 3A.
  • Driver output compatible with 2 or 4 phase, and 4,6 or 8 lead stepper motors.


  • Make sure the power supply voltage dose not exceed the drive’s input range. Double check the connections and make sure the power lead polarity is correct.
  • Do not set high current to small stepper motor. It is possible that the motor will be damaged.
  • Disconnect the motor from the load if you are not sure the move direction. Adjust the axis in the middle before trying to run the motor.
  • Never disconnect the motor lead when the power source is energized.

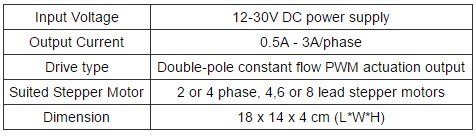

Electrical properties (ambient temperature Tj = 25 ℃ pm):

Current Adjusting

Decay Mode Setting

Subdivision Setting

What's In Box?

  • 1 x 3 Axis TB6560 Stepper Motor Driver
  • 1 x DB25 parallel cable
