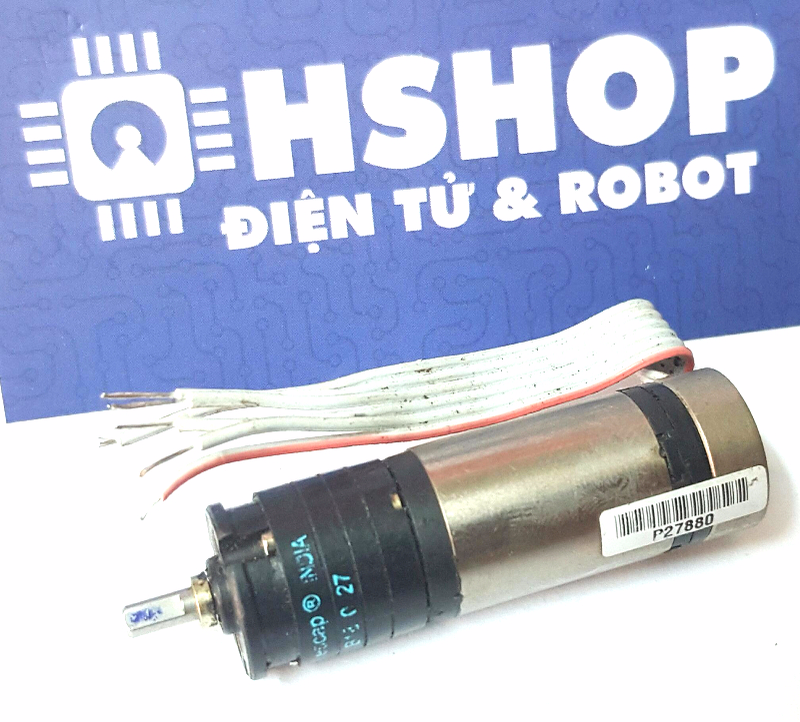

Động cơ DC Servo giảm tốc ESCAP 12V - 540rpm

Nhà sản xuất: Import
Giá bán
300,000₫
1: Red cable, motor+
2: VCC
3: Chanel A
4: ChanelB
5: GND
6: Motor-
Motor output torque: 0.143Nm

Place of origin

 Switzerland

Manufacturers (brand)

ESCAP

Model

16G 214EMR19

Rated voltage ( V )

 12

Rated Current ( mA )

 300mA

Load Current ( mA )

15mA

Speed ​​(rev / min)

 540rpm (no load) / 470rpm (nominal)

Motor Length ( mm )

 50

Motor

Diameter ( mm )

 16

Length ( mm )

27

Cylinder

Gearbox

Diameter ( mm )

 16

Length ( mm )

 17

Encoder

Diameter ( mm )

16

Length ( mm )

8

Output Lead

4

Diameter ( mm )

3

Shaft Length ( mm )

8
