Cảm biến khí NO2 DFRobot Fermion: MEMS Nitrogen Dioxide NO2 Gas Detection Sensor (Breakout, 0.1-10ppm) được sử dụng để đo nồng độ khí Nitrogen Dioxide NO2 có trong không khí, cảm biến sử dụng công nghệ MEMS cho kích thước nhỏ gọn, thời gian khởi động và phản hồi nhanh, tiết kiệm năng lượng vượt trội, cảm biến sử dụng giao tiếp Analog nên có thể dễ dàng đọc giá trị bằng ADC của Vi Điều Khiển.
Xin lưu ý:
Fermion: MEMS Nitrogen Dioxide NO2 Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure the concentration of nitrogen dioxide gas, and is suitable for nitrogen dioxide detector, automobile exhaust detection, and other application scenarios.
Precautions for use
- Kindly remove the protective film before usage.
- To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
- Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
- Prevent contamination from alkalis, alkali metal salts, and halogens.
- Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
- Avoid contact with water, condensation, and freezing.
- Minimize excessive vibration, impact, and dropping.
- Please refrain from employing this module in systems that involve personal safety concerns.
- For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
FEATURES

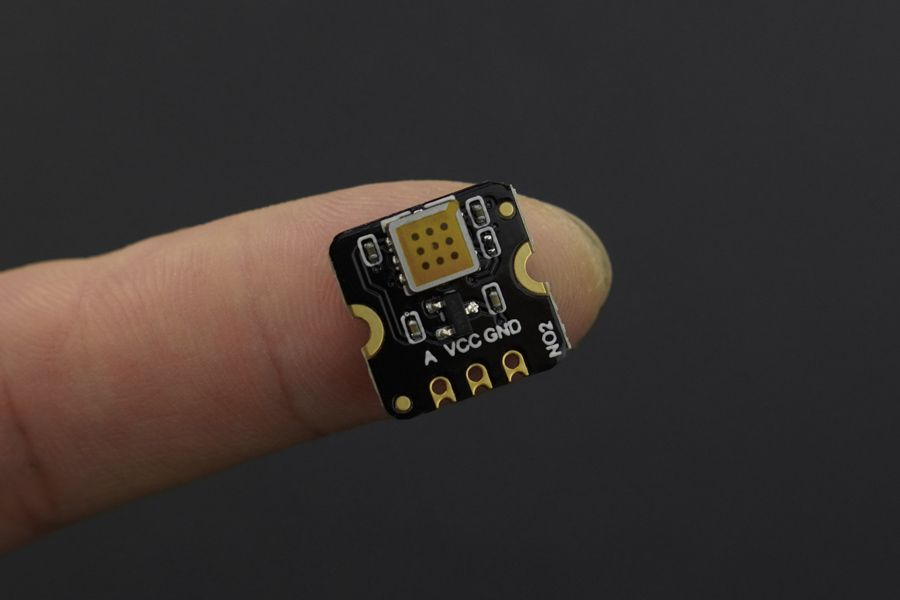

- Compact size, measuring only 13*13*2.5mm
- Low power consumption, operating current ＜20mA
- High sensitivity and rapid response recovery
- Advanced MEMS technology
APPLICATIONS
- Air quality monitoring: measures the level of NO2 and other pollutants in the ambient air.
- Automotive emission control: monitors the NO2 emission from vehicles and adjusts the fuel injection and combustion parameters to reduce the emission.
- Industrial safety: detects the leakage or exposure of NO2 and other toxic gases in industrial processes or workplaces.
SPECIFICATION
- SKU: SEN0574
- Gas detected: NO2
- Detection range: 0.1-10ppm
- Operating voltage: 3.3-5V
- Operating current: ＜20mA
- Output signal: Analog voltage
- Sensitivity: R0(in air)/Rs(in 5ppm NO2) ≥ 0.5
- Operating temperature: -10-50℃
- Operating humidity: 15-90%RH (non-condensing)
- Lifespan: ≥5 years (in air)
- Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"
Bộ sản phẩm bao gồm:

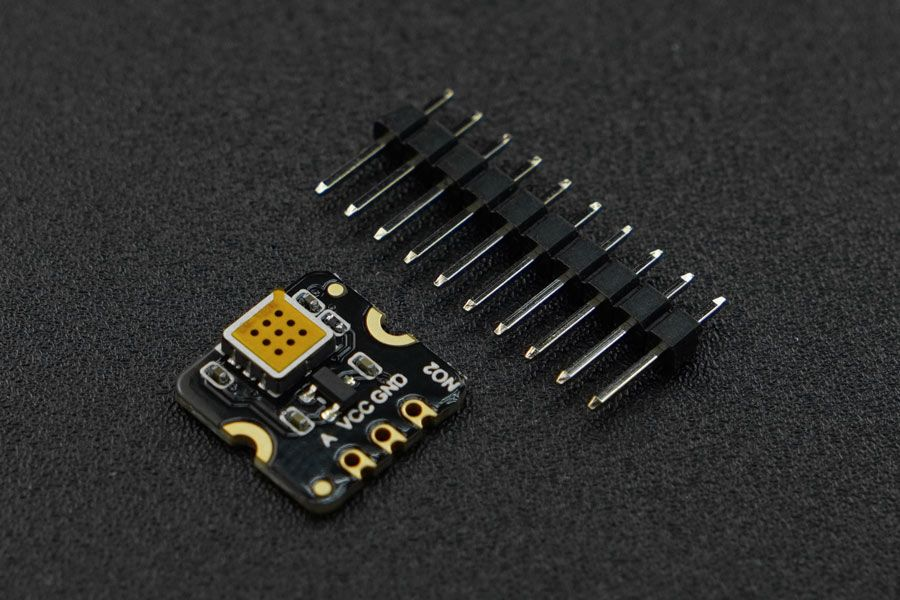

- Fermion: MEMS Nitrogen Dioxide NO2 Gas Detection Sensor × 1
- 2.54mm pitch header pin × 1
